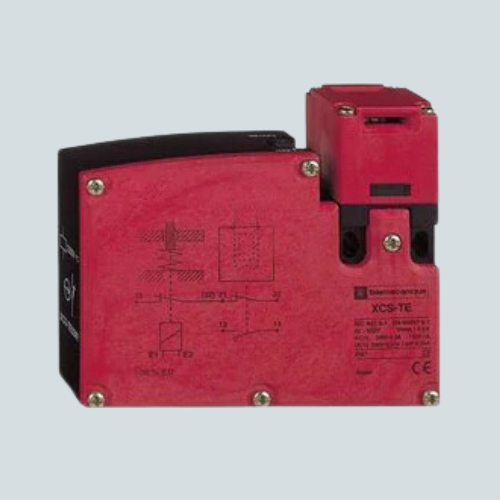

Overview of Schneider XCSTE5341 Safety Switch
The Schneider XCSTE5341 is a plastic-body key-operated safety switch from the Preventa XCS series. It features 1 Normally Closed (NC) and 1 Normally Open (NO) slow-break contacts, designed for safety interlock applications. The switch offers reliable protection with an IP67 rating, making it suitable for harsh industrial environments.
Key Features of Schneider XCSTE5341
- Robust plastic housing with IP67 protection against dust and water immersion.
- Contact configuration: 1 NC + 1 NO slow-break contacts for secure safety monitoring.
- Key-operated mechanism with turret head for easy installation and safety control.
- Single cable entry via tapped Pg 11 for secure wiring.
- Meets IEC 60947-5-1 and EN ISO 14119 safety standards for reliable operation.
- Operating temperature range from -25 to 70 °C suitable for industrial use.
- Compact size (110 x 33 x 94 mm) fitting various guarding applications.
Technical Specs of Schneider XCSTE5341
| Parameter | Value |
|---|---|
| Type | Key-operated safety switch |
| Series | Preventa XCS |
| Body Material | Plastic |
| Contacts | 1 NC + 1 NO, slow break |
| Cable Entry | 1 x Pg 11 tapped entry |
| Protection Rating | IP67 |
| Dimensions (WxDxH) | 110 x 33 x 94 mm |
| Operating Temperature | -25 to 70 °C |
| Standards | IEC 60947-5-1, EN ISO 14119 |
Applications / Use Case
The Schneider XCSTE5341 safety switch is ideal for interlocking safety guards, doors, and access points in machinery to ensure operator safety and regulatory compliance.
