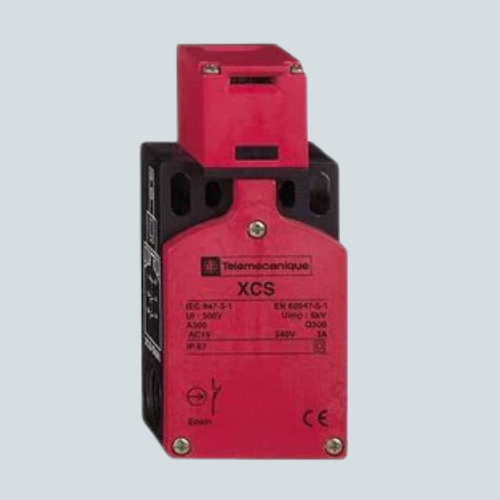

Overview of Schneider XCSTA592 Safety Switch
The Schneider XCSTA592 is a key-operated safety switch from the Preventa XCS series. It features a robust red-coated polyamide (plastic) body with an adjustable turret head. The switch offers 1 Normally Closed (NC) and 2 Normally Open (NO) slow-break contacts, suited for operator safety and machine guarding applications in harsh environments.
Key Features of Schneider XCSTA592
- Key-operated mechanism with adjustable turret head for flexible installation.
- Robust polyamide body with red coating for industrial durability.
- Contact configuration: 1 NC + 2 NO slow-break contacts ensuring reliable switching.
- Two M16 tapped cable gland entries for secure wiring and ingress protection.
- High protection rating IP67 for dust and water resistance.
- Certified to EN/ISO 14119, EN/IEC 60204-1, UL 508 standards for safety compliance.
- Mechanical durability rated up to 5,000,000 operations.
- Operates reliably between -25 to 70 °C, suitable for harsh industrial conditions.
Technical Specs of Schneider XCSTA592
| Parameter | Value |
|---|---|
| Type | Key-operated safety switch |
| Series | Preventa XCS |
| Body Material | Polyamide, red coated |
| Actuator | Adjustable turret head |
| Contact Configuration | 1 NC + 2 NO, slow break |
| Cable Entry | 2 x M16 tapped entries |
| Protection Rating | IP67 |
| Mechanical Durability | 5,000,000 operations |
| Operating Temperature | -25 to 70 °C |
Applications / Use Case
The Schneider XCSTA592 safety switch is ideal for securing machine guard doors, safety interlocks, and operator safety applications in industrial environments.
Schneider Electric products meet rigorous international safety standards to ensure dependable operation.
-
