Overview of Schneider VW3M3403 Encoder Interface Module

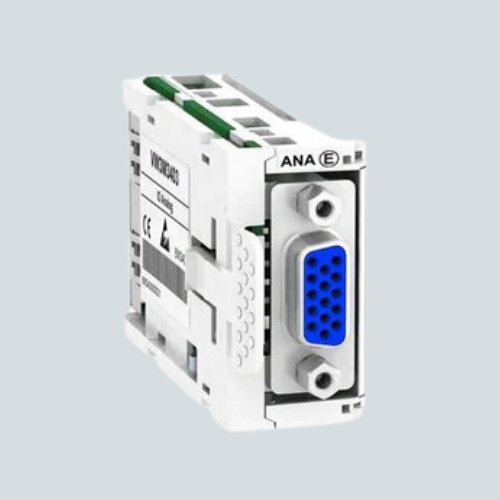

The Schneider VW3M3403 is an encoder interface module designed for the Lexium 32 servo drive series. It supports analog input signals from various encoders including 1 Vpp, 1 Vpp/Hall, and Hiperface, enabling precise machine and motor control. The module connects via a high-definition SUB-D 15-pin female connector.
Key Features of Schneider VW3M3403
- Versatile Encoder Support: Compatible with 1 Vpp, 1 Vpp/Hall, and Hiperface encoder inputs for flexible integration.
- High-Definition Connector: 15-pin SUB-D female connector ensures secure and reliable signal transfer.
- Voltage Supply: Supplies 12 V for Hiperface and 5 V for 1 Vpp/Hall encoders.
- Compact Module: Small footprint for straightforward installation within Lexium 32 drives.
- Durable Construction: Built for industrial applications with high reliability and performance.
Technical Specs of Schneider VW3M3403
| Specification | Details |
|---|---|
| Compatible Drives | Lexium 32, 32M |
| Encoder Types Supported | 1 Vpp, 1 Vpp/Hall, Hiperface |
| Connector Type | 1 female high-definition SUB-D 15-pin |
| Supply Voltage | 12 V for Hiperface, 5 V for 1 Vpp/Hall |
| Operating Voltage | 5 V |
| Module Type | Encoder interface module |
| Weight | Approximately 50 g |
| Compliance | RoHS |
| Warranty | 2 years |
Applications / Use Case
The VW3M3403 encoder interface module is used to connect various encoder types to Lexium 32 servo drives, facilitating accurate position and speed control in industrial automation and machine tool applications.
Schneider Electric offers a 2-year warranty, ensuring the module's reliability and performance.
-
