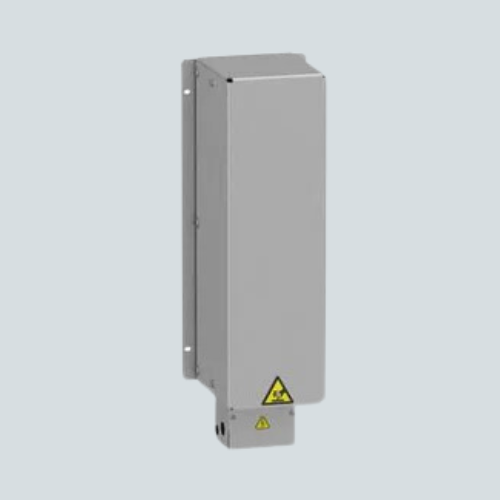

Overview of Schneider VW3A7733 Braking Resistor

The Schneider VW3A7733 is a braking resistor designed for use with Altivar variable speed drives, including ATVs 320, 340, and 900 series. It features a resistance of 16 ohms and a power rating of 1.1 kW, providing effective dissipation of kinetic energy during motor deceleration. The resistor carries an IP20 protection rating, suitable for indoor industrial environments.

Key Features of Schneider VW3A7733

  • 16 Ohm Resistance: Provides optimized resistance value for controlled braking performance.
  • Power Rating of 1.1 kW: Efficiently dissipates braking energy in medium-duty applications.
  • IP20 Protection Class: Ensures protection against solid objects but not liquid ingress.
  • Compact Dimensions: Measures 190 mm (H) x 190 mm (W) x 120 mm (D), facilitating easy installation.
  • Durable Construction: Built for reliable performance within specified temperature ranges.
  • Compatibility: Suitable for Altivar Machine series including ATV320, ATV340, and ATV900 variable speed drives.

Technical Specs of Schneider VW3A7733

Specification Details
Resistance 16 Ohms (at 20°C)
Power Rating 1.1 kW
Protection Class IP20
Dimensions (HxWxD) 190 x 190 x 120 mm
Weight Approx. 1.9 kg
Operating Temperature -25 to 70 °C
Storage Temperature -40 to 70 °C
Use Compatible with Altivar 320, 340, 900 variable speed drives
Standards CE compliant
Warranty 2 years

Applications / Use Case

The VW3A7733 braking resistor is used for controlled deceleration in variable speed drives, protecting motors and drives by dissipating excess energy during braking. It is suited to industrial machinery, conveyors, and process control applications.

Schneider Electric provides a 2-year warranty ensuring product reliability in industrial environments.
