Overview of Schneider VW3A5104 Motor Choke

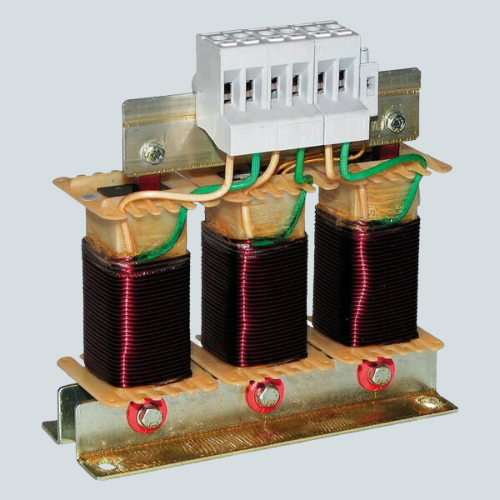

The Schneider VW3A5104 motor choke is a high-performance output filter designed for use with Altivar variable speed drives, particularly the Altivar 61 and Altivar 71 series. Rated for 215 A, this set of three chokes helps reduce voltage spikes and harmonics, ensuring motor protection and drive reliability in industrial applications.

Key Features of Schneider VW3A5104

  • High Current Rating: Rated for 215 A, suitable for large motor loads and industrial drives.
  • Overvoltage Protection: Limits voltage spikes (dv/dt) at the motor terminals to protect motor insulation.
  • Harmonic Filtering: Reduces harmonic distortion in current produced by variable speed drives.
  • Set of 3 Chokes: Designed for three-phase motor systems for balanced filtration and protection.
  • Robust Construction: Ensures reliable performance under demanding industrial conditions.
  • Easy Installation: Compatible with Altivar 61 and 71 drives for quick integration.

Technical Specs of Schneider VW3A5104

Specification Details
Rated Current 215 A
Application Output filter for Altivar 61 / 71 variable speed drives
Filter Type Motor Choke
Protection Index IP00
Weight Approx. 15.5 kg (set of 3)
Function Limits dv/dt to 500 V/μs at motor terminals
Reduction Reduces motor earth leakage and interference

Applications / Use Case

The VW3A5104 motor choke is used with Altivar variable speed drives to protect motors from electrical stresses and prolong equipment life. It is ideal for heavy-duty industrial machinery and process control systems requiring reliable motor protection.

Schneider Electric supports this product with a quality assurance warranty for dependable operation.
