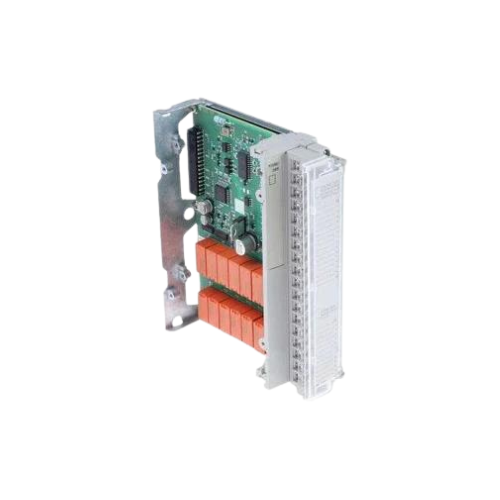

Overview of Schneider TSXDMZ28DR Discrete Relay I/O Module

The Schneider TSXDMZ28DR is a discrete relay I/O base module for the Modicon TSX Micro automation platform. It features 28 inputs/outputs with 16 discrete inputs operating at 24 V DC and relay outputs. Designed for industrial control, this module ensures reliable switching for resistive and inductive loads with fast response times and comprehensive protection.

Key Features of Schneider TSXDMZ28DR

  • 16 Discrete Inputs: Screw terminal inputs for easy wiring, compatible with 2-wire/3-wire proximity sensors.
  • Relay Outputs: Normally open (NO) contacts suitable for resistive and inductive loads.
  • Wide Voltage Compatibility: Input voltage 24 V DC negative; output voltage range 10-34 V DC and 19-264 V AC.
  • Fast Response Time: 0.1 to 7.5 ms input response time; less than 10 ms relay output switching time.
  • Robust Electrical Protection: Includes overload and short-circuit protection with 1500 V isolation voltage for enhanced safety.
  • Energy Efficient: Power dissipation of 4.5 W and low current consumption (131-160 mA).

Technical Specs of Schneider TSXDMZ28DR

Specification Details
Discrete Inputs 16 screw terminal block
Input Voltage 24 V DC negative
Output Type Relay, Normally Open (NO)
Output Voltage Range 10...34 V DC, 19...264 V AC
Response Time 0.1...7.5 ms input; <10 ms output
Current Consumption 131 mA negative, 160 mA positive
Power Dissipation 4.5 W
Isolation Voltage 1500 V for 1 second
Insulation Resistance >= 10 MOhm
Weight 0.5 kg
Compliance IEC 1131-2
Warranty 2 years

Applications / Use Case

The TSXDMZ28DR module is suited for industrial automation tasks requiring discrete input monitoring and relay output control. Commonly used in manufacturing lines, machine control, and process automation where fast and reliable switching is essential.

Schneider Electric backs this module with a 2-year warranty, ensuring dependable operation in industrial environments.
