Buy Schneider Electric TSXAEY414 – Product Overview

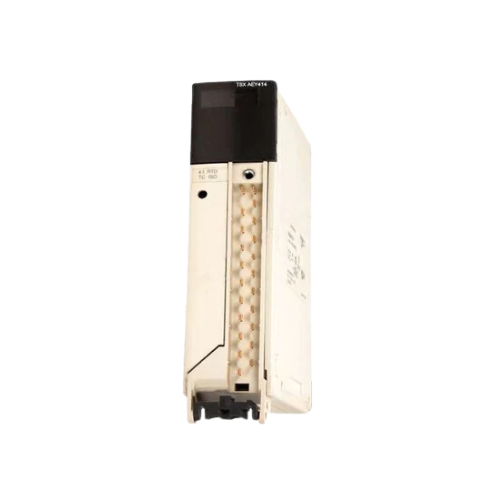

The Schneider Electric TSXAEY414 is a 4-channel analog input module designed for industrial automation and process control applications. This Modicon Premium module features 16-bit analog-to-digital conversion for precise signal acquisition and reliable data processing. Built with screw terminal block connections, the TSXAEY414 ensures secure installation and minimal setup time. CE-marked for European safety compliance, this module is ideal for manufacturing facilities, process control systems, and automated production lines requiring accurate analog signal monitoring.

Schneider Electric TSXAEY414 Features & Benefits

  • 16-bit A/D conversion ensures high-resolution data acquisition with measurement accuracy from 0.13% to 1.2% of full scale
  • Four configurable input channels supporting voltage (±10V, ±5V, 0–10V, 0–5V, 1–5V, –13 to 63 mV) and current (4–20 mA) signals
  • Channel and bus isolation at 2830 Vrms with common-mode protection up to 240V AC or 110V DC
  • Fast nominal read cycle time of 550 ms for efficient real-time monitoring
  • Low power consumption: 660 mA at 5V DC, optimized for industrial control systems
  • Screw terminal block for reliable connections and easy sensor integration

Schneider Electric TSXAEY414 Specifications & Datasheet

Specification Value
Input Channels 4 configurable
A/D Conversion Resolution 16 bits
Input Types Voltage, Current, Temperature (Pt, Ni), Thermocouples
Read Cycle Time 550 ms maximum
Measurement Error 0.13–1.2% of full scale
Common-Mode Protection 240V AC or 110V DC maximum
Current Consumption (5V DC) 660 mA typical
Connection Type Screw terminal block
Safety Certification CE marked

Schneider Electric TSXAEY414 Applications in Industrial Automation

This module is commonly used in industrial automation, process control, machine automation, production line systems, and factory control panels worldwide. It enables precise monitoring of analog sensors including temperature probes, thermocouples, pressure transmitters, and level sensors. Ideal for automotive manufacturing, food and beverage processing, chemical plants, and motion control systems requiring reliable data acquisition and signal conversion.

Schneider Electric TSXAEY414 Price & Worldwide Availability

Check Schneider Electric TSXAEY414 pricing and availability online for global dispatch. This component is available through industrial parts distributors with real-time stock updates. LeadTime.ca supplies genuine OEM models with fast shipping across North America, Europe, Asia, and international markets. Order now for worldwide delivery or contact us for bulk export pricing.

Why Buy Schneider Products from LeadTime.ca

All products on LeadTime.ca are genuine, authentic OEM components sourced from verified suppliers. We are a trusted worldwide industrial parts distributor offering factory-tested automation components with fast global shipping. As a supplier in Canada and the United States, we provide export-ready automation components backed by technical support and competitive pricing.
