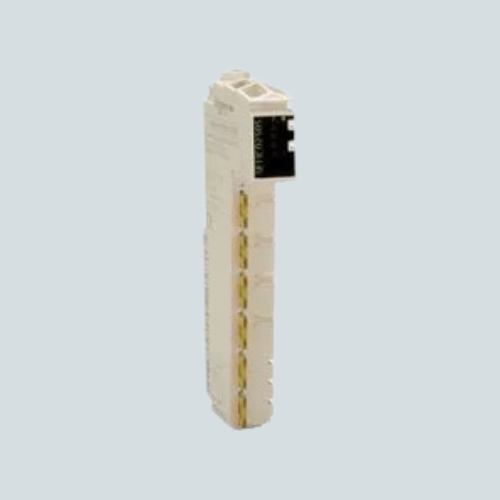

TM5SE1MISC20005

Available on Request
$0.00
$0.00
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Have a target price? No worries, submit your target price below

Buy Schneider TM5SE1MISC20005 – Product Overview

The Schneider TM5SE1MISC20005 is a high-performance counter module engineered for industrial automation and encoder emulation applications. This DIN rail-mounted I/O module delivers 4 MHz counting speed with 16/32-bit resolution, making it ideal for motion control, process monitoring, and real-time production line systems. Designed for the Modicon TM5 PLC platform, this genuine OEM component integrates seamlessly into factory control panels and machine automation environments across North America, Europe, and Asia.

Schneider TM5SE1MISC20005 Features & Benefits

This counter module features encoder emulation on channels A/B with dual-resolution counting (16 bits/32 bits), enabling precise position tracking and speed measurement. Operating at up to 4 MHz with a maximum 2 ms cycle time, it supports both incremental and quadrature encoder inputs. The module provides 500 Vrms AC isolation between channel and bus, protecting against signal interference in noisy industrial environments. Screw terminal connectivity ensures reliable field wiring, while the compact DIN rail mounting allows flexible integration into tight control panel spaces.

Schneider TM5SE1MISC20005 Specifications & Datasheet

Specification Value
Manufacturer Schneider Electric
Supply Voltage 24 VDC (20.4–28.8 VDC range)
Counter Resolution 16 bits / 32 bits
Maximum Frequency 4 MHz
Cycle Time 2 ms
Isolation 500 Vrms AC
Mounting DIN Rail
Termination Screw Terminal
Operating Temperature 0°C to 60°C
IP Rating IP20

Access the official technical datasheet and configuration manual before installation to ensure full compatibility with your Modicon TM5 system.

Schneider TM5SE1MISC20005 Applications in Industrial Automation

This module is widely deployed in motion control systems, production line synchronization, machine tool automation, and conveyor belt speed monitoring. It excels in applications requiring precise incremental encoder input processing, such as robotic arm positioning, automated packaging lines, and CNC machine integration. Use it for real-time pulse counting in process control environments where accuracy and fast response times are critical for operational safety and product quality.

Schneider TM5SE1MISC20005 Price & Worldwide Availability

Check current pricing and real-time stock status for the Schneider TM5SE1MISC20005 online. This component is available for fast worldwide shipping across North America, Europe, Asia, and international industrial markets. Bulk orders and export pricing are available upon request.

Why Buy Schneider Products from LeadTime.ca

Every product on LeadTime.ca is genuine, authentic OEM, factory-tested, and sourced from verified suppliers. As a trusted worldwide industrial parts distributor, we guarantee fast international dispatch and supply export-ready automation components to industries globally. Our commitment to quality ensures you receive only original Schneider Electric components backed by manufacturer warranties and technical support.
