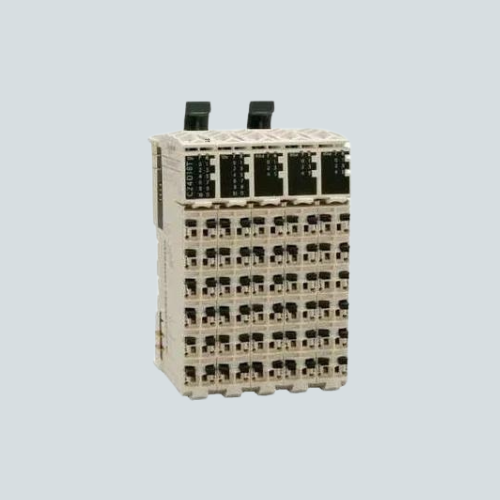

TM5C24D18T

Buy Schneider Electric TM5C24D18T – Product Overview

Get genuine Schneider Electric TM5C24D18T compact I/O expansion block online today with fast global shipping. This digital I/O module is designed for the Modicon TM5 series, delivering 24 discrete inputs and 18 transistor outputs in a single, scalable unit. Industrial automation engineers worldwide rely on this expansion block for flexible, cost-effective I/O configuration across packaging, material handling, and machine control applications. As a trusted supplier in Canada and the United States, LeadTime.ca stocks factory-grade automation components ready for export to North America, Europe, Asia, and beyond.

Schneider Electric TM5C24D18T Features & Benefits

The TM5C24D18T delivers 42 total I/O points (24 DI + 18 DO) with 24 V DC supply compatibility. Key features include sink-type discrete inputs with 3.75 mA current rating, source-type transistor outputs rated at 0.5 A per output with up to 9 A peak capacity, and configurable input filtering (25–100 ms). Built-in surge protection (0.5 kV differential, 1 kV common mode) and 500 V RMS AC insulation between channels and bus ensure reliable operation in harsh industrial environments. Response time is ultra-fast at ≤300 µs state transition, while low power dissipation (≤3.71 W) reduces thermal load in control cabinets. Spring terminal blocks provide secure, removable connections for quick commissioning and maintenance.

Schneider Electric TM5C24D18T Specifications & Datasheet

Review the official Schneider Electric TM5C24D18T technical data to ensure compatibility with your Modicon M258 or LMC058 controller. Module composition: 2 × 12-input digital modules, 3 × 6-output digital modules. Input voltage range: 20.4–28.8 V DC. Output voltage: 20.4–28.8 V DC. Input impedance: 6.4 kOhm. Current consumption: 70 mA @ 5 V DC bus; 140 mA @ 24 V DC I/O. Maximum leakage current: 5 µA (outputs off). Voltage drop: <0.3 V @ 500 mA output. Housing: white plastic enclosure. Certifications include CE, CSA, cULus, REACH, RoHS, and IEC 61131-2 compliance. Access full configuration details and wiring diagrams from the RS Online or Mouser datasheets.

Schneider Electric TM5C24D18T Applications in Industrial Automation

This compact I/O expansion block is commonly deployed in industrial automation, process control, machine automation, production line systems, and factory control panels worldwide. The TM5C24D18T supports local or remote expansion via CAN open or the local TM5 expansion bus, making it ideal for distributed I/O islands that reduce wiring complexity and system cost. Typical use cases span packaging machinery, material handling conveyors, and multi-axis motion control systems requiring flexible, modular input/output architecture.

Schneider Electric TM5C24D18T Price & Worldwide Availability

Check Schneider Electric TM5C24D18T pricing and availability online with global dispatch. LeadTime.ca offers real-time stock status and bulk order support for industrial customers across North America, Europe, and Asia-Pacific regions. Request a quote today for volume pricing and custom lead time agreements.
