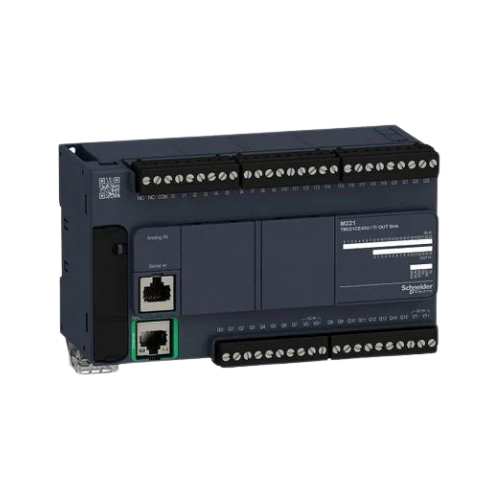

Overview of Schneider TM221CE40U Logic Controller

The Schneider TM221CE40U is a high-performance Modicon M221 logic controller designed for industrial automation. It features 40 I/O points including 24 discrete inputs (4 fast), 16 transistor outputs (4 fast), and 2 analog inputs with 10-bit resolution. Operating on 24 V DC power supply, the controller supports USB and Ethernet communication for versatile programming and network integration.

Key Features of Schneider TM221CE40U Controller

  • 40 total I/O points: 24 discrete inputs, 16 transistor outputs.
  • Four fast inputs and four fast outputs support high-speed operations.
  • Two analog inputs (0–10 V) with 10-bit resolution for precision measurement.
  • Communication ports include USB Mini-B and Ethernet RJ45 for programming and connectivity.
  • Memory capacity of 256 kB for application and data RAM, expandable up to 2 GB with an SD card.
  • Negative logic (sink) transistor outputs with maximum current of 0.5 A per output.
  • Advanced protection features with configurable input filtering times and robust design.
  • Compact housing (160 mm x 70 mm x 90 mm) suitable for DIN rail or panel mounting.
  • Compliant with IEC 61131-2 standards and provides reliable operation in industrial environments.

Technical Specs

Specification Details
Supply Voltage 24 V DC (20.4–28.8 V)
Discrete Inputs 24 (4 fast inputs)
Analog Inputs 2 (0–10 V, 10-bit resolution)
Discrete Outputs 16 transistor outputs (4 fast)
Output Current 0.5 A per output
Memory 256 kB RAM, up to 2 GB SD card
Communication Ports USB Mini-B, Ethernet RJ45, RS232/RS485 via RJ45
Operating Temperature -10°C to 55°C
Dimensions (HxWxD) 160 x 70 x 90 mm
Protection Rating IP20

Applications / Use Case

The TM221CE40U controller is engineered for advanced control tasks in manufacturing, packaging, HVAC, material handling, and building automation. Its flexible analog and digital I/O, along with powerful communication interfaces, support complex automation scenarios and scalable industrial networks.

Schneider Electric’s Modicon M221 series delivers dependable automation controllers that balance performance with ease of use.
