STBXBA1000

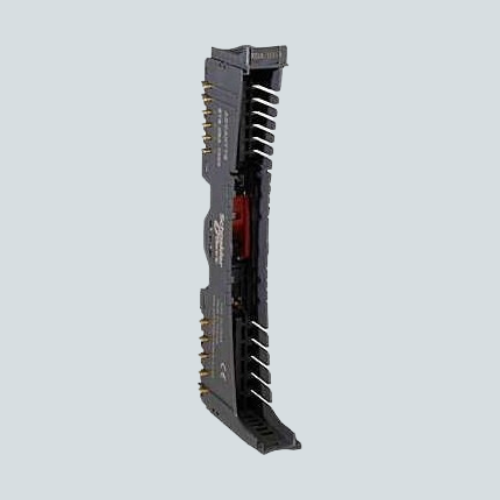

Overview of Schneider STBXBA1000 Mounting Base

The Schneider STBXBA1000 is a compact mounting base designed for Modicon STB distributed I/O modules. With a width of 13.9 mm and lightweight construction (0.024 kg), this base provides secure and flexible mounting for various input and output modules in industrial automation systems. It is compatible with the full range of Modicon STB modules, facilitating easy installation and maintenance in control panels.

Key Features of Schneider STBXBA1000 Mounting Base

• Compact 13.9 mm width for space-saving installations.
• Lightweight design weighing only 0.024 kg.
• Designed for mounting and interconnecting Modicon STB I/O modules.
• Enables secure and reliable connection of digital and analog input/output modules.
• Compatible with DIN rail mounting systems.
• Robust design suitable for various industrial environments including packaging, printing, textile, and semiconductor sectors.
• Supports modular system expansions and facilitates easy replacement of I/O modules.

Technical Specs

Applications / Use Case

The STBXBA1000 mounting base is used in distributed I/O systems for mounting and securing various digital and analog I/O modules. It is ideal for industries such as packaging, bottling, assembly, distribution, textile, printing, and semiconductor manufacturing, ensuring organized and scalable control panel setups.

Schneider Electric provides a reliable platform for modular automation systems with the Modicon STB range ensuring ease of installation and maintenance.
