STBDDO3410K

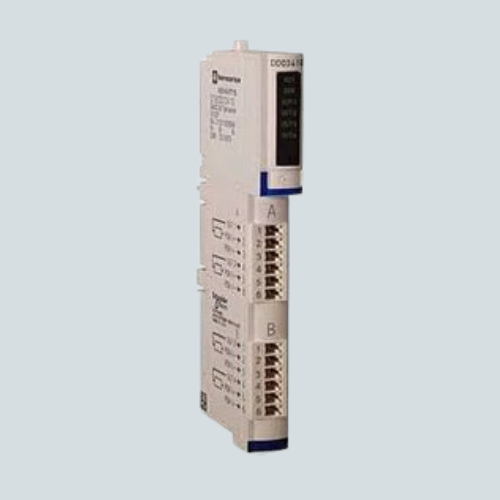

Overview of Schneider STBDDO3410K Digital Output Kit

The Schneider STBDDO3410K is a standard digital output module designed for use within the Modicon STB distributed I/O system. It provides four solid-state outputs operating at 24V DC with a current capacity of 500mA per output. The module delivers fast response times less than 10 ms for switching on and off, making it suitable for precise control in industrial automation processes. It includes both screw type and spring clamp connectors for flexible wiring options.

Key Features of Schneider STBDDO3410K Digital Output Module

• Four solid-state outputs rated at 24V DC and 500 mA each for reliable switching.
• Fast output response times: less than 10 ms for both ON and OFF switching.
• Low current consumption in the OFF state (0.4 mA at 30 V DC) ensuring energy efficiency.
• Supports both 6-terminal screw type and spring clamp connectors for flexible installation.
• Compact design compatible with STBXBA1000 base from Modicon STB series.
• Operating temperature range from 0°C to 60°C suitable for industrial environments.
• Compliance with international standards such as EN/IEC 61131-2, CE, UL, and RoHS.

Technical Specs

Applications / Use Case

The STBDDO3410K digital output kit is used for switching loads such as actuators, solenoids, and indicators in industrial automation and process control systems. It integrates into Modicon STB distributed I/O architectures for flexible, scalable automation solutions.

Schneider Electric’s STB series modules are designed for rugged industrial use, offering reliable and efficient performance.
