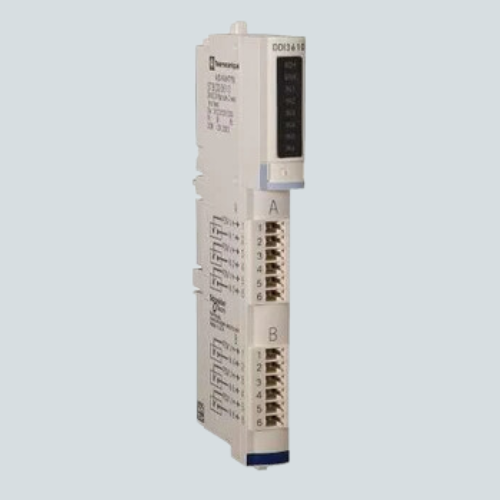

Overview of Schneider STBDDI3610 Digital Input Module

The Schneider STBDDI3610 is a six-channel digital input module designed for Modicon STB distributed I/O systems. It operates on a 24 V DC power supply to receive signals from two-wire sensors and switches. The module features sink-type digital inputs compliant with IEC type 1 standards and supports input voltage ranges typical for industrial environments. Its compact design allows easy integration into automation systems, providing reliable status monitoring.

Key Features of Schneider STBDDI3610 Digital Input Module

  • Six digital input channels for two-wire sensor signal acquisition.
  • Sinking input type (IEC type 1) compatible with industrial field devices.
  • Input voltage range: 15-30 V DC (logic 1), with protection for voltage spikes up to 56V.
  • 1 ms input filter time constant to prevent noise interference.
  • LED indicators for input channel status and module operation.
  • Reverse polarity and short-circuit protection for reliable operation.
  • Compact 13.9 mm width module for efficient space utilization.
  • Operates in ambient temperatures from 0°C to 60°C.

Technical Specs

Specification Details
Power Supply 24 V DC (19.2 - 30 V)
Input Channels 6 digital sink inputs
Input Voltage Limits 15-30 V DC logic 1, -3 to +5 V DC logic 0
Max Input Voltage 56 V (transient)
Input Current 2 mA typical at 24 V DC
Input Impedance 5.3 kΩ @ 30 V DC
Response Time Off-to-On: 1.21 ms, On-to-Off: 1.74 ms
Protection Reverse polarity, short circuit protection
Module Width 13.9 mm
Operating Temperature 0°C to 60°C

Applications / Use Case

This digital input module is used for monitoring sensor signals in distributed automation systems, providing reliable digital input status for industrial process control, machine automation, and building management applications.

Schneider Electric’s STB modular I/O systems offer reliable, scalable solutions for modern industrial automation.
