Buy Schneider Electric STBACI1230K – Product Overview

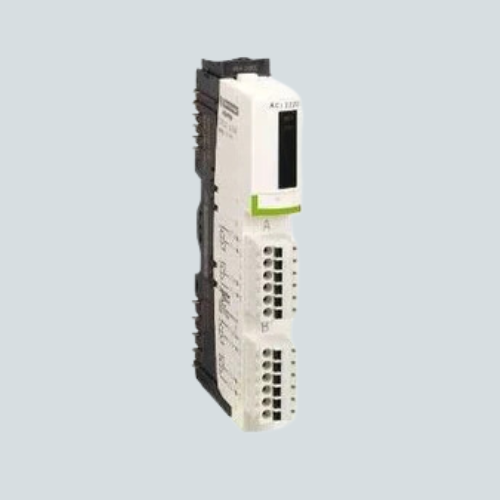

Order the genuine Schneider Electric STBACI1230K, an industrial-grade standard analog input kit designed for the Modicon STB distributed I/O solution. This factory-tested module delivers reliable 0–20 mA current measurement with 12-bit resolution across 2 analog input channels. Built for demanding industrial automation environments, it features DIN rail mounting, cold/hot swapping capability, and comprehensive protection. Available worldwide from LeadTime.ca with fast global shipping for North American and international customers.
Schneider Electric STBACI1230K Features & Benefits
- 2 analog input channels (0–20 mA) with 12-bit digital resolution
- Cold swapping and hot swapping fallback support for seamless module replacement
- Fast 5 ms response time with 10 ms update cycle
- Exceptional accuracy: ±0.5% full-scale error at 25°C, ±0.01%/°C temperature drift
- Integral linearity ±0.1% FS; monotonic differential linearity
- Low-pass input filter (25 Hz) for signal noise reduction
- Compact DIN rail form factor: 128.3 mm width, 13.9 mm height, 70 mm depth
- Dual status LEDs (green RDY, red ERR) for real-time diagnostics
- ATEX Cat 3G, CSA, FM Class 1 Division 2, UL certified for hazardous and regulated zones
Schneider Electric STBACI1230K Specifications & Datasheet
The STBACI1230K operates on 24 V DC supply with 30 mA logic bus current draw. Input impedance measures ≤300 Ohm; sensor supply delivers 100 mA per channel with short-circuit protection. Integral linearity achieves ±0.1% FS; differential linearity is monotonic. The module supports EN 61131-2 and IEC 61131-2 data formats. Operating altitude rated to 2000 m; relative humidity tolerance 95% at 60°C without condensation. Vibration resistance: ±0.35 mm at 10–58 Hz; 3 gn at 58–150 Hz (35×7.5 mm rail); 5 gn at 58–150 Hz (35×15 mm rail). Pollution degree 2 per IEC 60664-1. Refer to the official Schneider datasheet for complete technical specifications and installation guidelines.
Schneider Electric STBACI1230K Applications in Industrial Automation
This module is widely deployed in process control systems, machine automation, production line monitoring, factory control panels, and motion control applications. It integrates seamlessly with Modicon STB distributed I/O architecture, enabling real-time analog measurement in PLCs and industrial controllers across manufacturing, chemical processing, utilities, and ATEX-regulated environments worldwide.
Schneider Electric STBACI1230K Price & Worldwide Availability
View Schneider Electric STBACI1230K pricing and stock status for bulk orders and global shipping. LeadTime.ca offers real-time availability updates and competitive quotes for genuine OEM inventory sourced from verified suppliers in Canada, the United States, and international industrial markets. Request a quote today for fast worldwide delivery.
