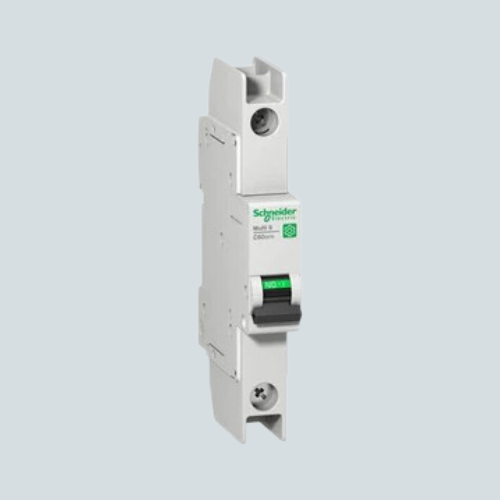

Overview of Schneider M9F52101 Miniature Circuit Breaker (MCB)

The Schneider M9F52101 is a single-pole Miniature Circuit Breaker (MCB) from the Multi9 C60BPR series. It is rated for 1 ampere and features a C-curve tripping characteristic, suitable for low current circuit protection. Designed for industrial, commercial, and residential applications, it offers reliable overload and short-circuit protection with excellent breaking capacity.

Key Features of Schneider M9F52101

  • Current Rating: 1 A for protecting low-current circuits.
  • Poles: Single-pole design for branch circuit protection.
  • Tripping Curve: C-curve, suitable for moderate inrush currents from motors and transformers.
  • Breaking Capacity: 14 kA at 240 VAC and 10 kA at 415 VAC meeting UL 489 and IEC/EN 60947-2 standards.
  • Voltage Rating: Operates at 240/277 VAC and 60 VDC.
  • Mounting Type: DIN rail mount for easy installation in electrical panels.
  • Operating Temperature: -30°C to +70°C suitable for a wide range of environments.
  • Compact Design: Space-efficient installation in distribution boards and panels.

Technical Specs

Specification Details
Model Number M9F52101
Current Rating 1 A
Number of Poles 1
Tripping Curve C
Rated Operational Voltage (Ue) 240/277 VAC, 60 VDC
Breaking Capacity 14 kA at 240 VAC, 10 kA at 415 VAC
Mounting DIN rail
Operating Temperature -30 to 70 °C
Standards Compliance UL 489, IEC/EN 60947-2

Applications / Use Case

The Schneider M9F52101 is used for protecting low-current branch circuits in industrial, commercial, and residential electrical distribution systems. It ensures safety by protecting wiring and equipment from damage caused by overload and short circuits.

Schneider Electric offers full warranty and technical support for the Multi9 series products.
