Overview of Schneider M9F42304 Miniature Circuit Breaker (MCB)

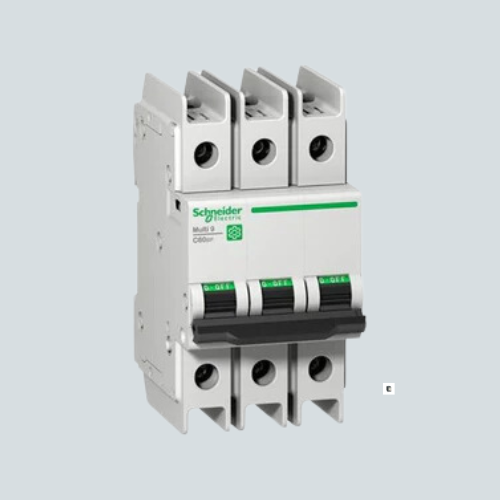

The Schneider M9F42304 is a 3-pole Miniature Circuit Breaker (MCB) from the Multi9 C60BP series. Designed for low voltage applications, it is rated for 4 amperes with a C-curve tripping characteristic. This circuit breaker provides reliable protection against overload and short-circuit in commercial and industrial electrical installations.

Key Features of Schneider M9F42304

  • Current Rating: 4 A suitable for low-current circuit protection.
  • Poles: 3 poles for three-phase circuit protection.
  • Tripping Curve: C-curve, effective for moderate inrush currents typical of motor loads.
  • Breaking Capacity: 10 kA at 415 V AC and compliant with IEC/EN 60947-2, UL 489 standards.
  • Operational Voltage: Suitable for 240/277/415/440 V AC systems at 50/60 Hz frequency.
  • Mounting Type: DIN rail mountable for easy installation and replacement.
  • Compact and Robust: Designed for durability and reliable operation in industrial settings.
  • Environmental Suitability: Operates between -30°C to +70°C in various environments.

Technical Specs

Specification Details
Model Number M9F42304
Current Rating 4 A
Number of Poles 3
Tripping Curve C-curve
Rated Operational Voltage (Ue) 240/277/415/440 V AC
Rated Insulation Voltage (Ui) 500 V AC
Breaking Capacity 10 kA at 415 V AC
Mounting DIN rail
Operating Temperature -30 to 70 °C
Standards IEC/EN 60947-2, UL 489

Applications / Use Case

The Schneider M9F42304 MCB is ideal for protecting three-phase electrical circuits in industrial plants, commercial buildings, and infrastructure systems. It provides reliable protection from overloads and short circuits, reducing downtime and protecting equipment.

Schneider Electric ensures warranty support and access to technical resources for seamless integration and maintenance.
