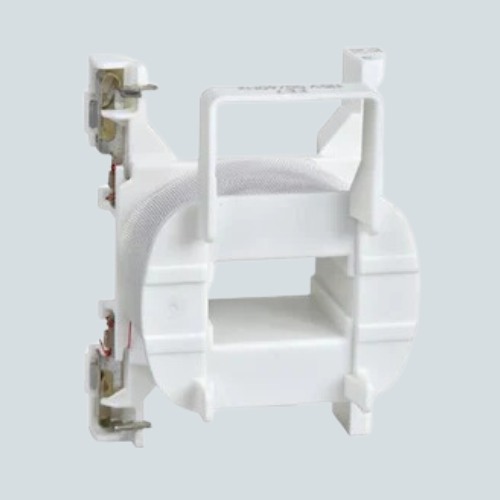

Overview of Schneider LXD1Q7 TeSys D Contactor Coil

The Schneider LXD1Q7 is a contactor coil designed for the TeSys D series, operating at 380 V AC with a frequency range of 50/60 Hz. It is compatible with contactors rated from 9 A to 38 A, including models LC1DT20 to DT40 and LC1D09 to D38. This coil delivers reliable performance for energizing and de-energizing contactors, enabling efficient control of electrical circuits.

Key Features of Schneider LXD1Q7

  • Voltage and Frequency: Operates at 380 V AC, 50/60 Hz, suitable for industrial power systems.
  • Compatibility: Fits TeSys D contactors within the 9 to 38 A current range for diverse applications.
  • Durable Design: Designed for up to 15 million mechanical cycles ensuring long service life.
  • Low Power Consumption: Efficient coil with heat dissipation of 2 to 3 W at 50/60 Hz.
  • Operating Temperature: Suitable for environments ranging from -5°C to 60°C.
  • Mechanical and Electrical Performance: High reliability and fast response for precise contactor control.
  • Green Premium Compliance: Complies with RoHS and REACh environmental regulations for sustainability.

Technical Specs

Specification Details
Model Number LXD1Q7
Control Voltage 380 V AC
Frequency 50/60 Hz
Compatibility LC1DT20 to DT40, LC1D09 to D38 contactors
Mechanical Durability 15 million cycles
Heat Dissipation 2-3 W
Operating Temperature -5 to 60 °C
Average Resistance 1551 Ohm at 20 °C
Inductance 55 H
Power Consumption Inrush 70 VA, Hold-in 7 to 7.5 VA
Weight 0.07 kg

Applications / Use Case

The Schneider LXD1Q7 coil is used in industrial control panels, motor starters, HVAC systems, and general electrical automation requiring reliable contactor activation and efficient power usage. It ensures high switching frequency and long service life in demanding environments.

Schneider Electric supports this product with Green Premium certification and robust technical assistance.
