LX9FF110

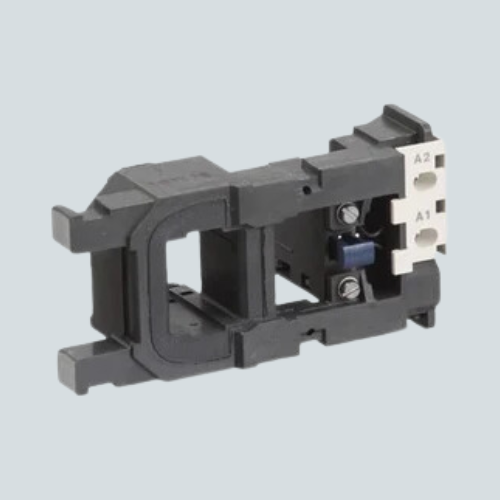

Overview of Schneider LX9FF110 Specific Contactor Coil

The Schneider LX9FF110 is a specific contactor coil designed for use with TeSys F series contactors such as LC1F115 and LC1F150. It operates within a voltage range of 110 to 115 V AC, supporting frequencies from 40 to 400 Hz. This coil features low power consumption and high tolerance to voltage drops, suitable for demanding industrial environments.

Key Features of Schneider LX9FF110

• Voltage Range: 110-115 V AC, operable at 40-400 Hz frequencies.
• Low Power Consumption: Designed to minimize energy usage with heat dissipation ranging between 5.9 to 7.2 W.
• High Operating Rate: Capable of up to 2400 operating cycles per hour at 55°C ambient temperature.
• Operating Temperature: Suitable for environments from -5°C to 55°C.
• Mechanical Durability: Rated for 10 million mechanical cycles ensuring long service life.
• Coil Resistance: Average resistance of 14.8 Ohms inrush at 20 °C, 579 Ohms holding at 20 °C.
• No Built-in Suppressor Module: Coil operates without internal suppression but is Green Premium compliant.

Technical Specs

Applications / Use Case

The LX9FF110 coil is suitable for industrial control systems where TeSys F contactors are used. Its low power consumption and high operating rate make it ideal for environments requiring frequent switching and reliable performance.

Schneider Electric provides built-in compliance with Green Premium environmental standards and offers technical support for easy integration.
