Buy Schneider Electric ComPact NSX100F – Product Overview

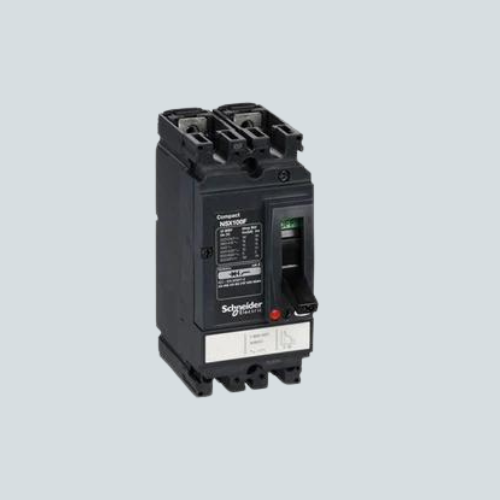

The Schneider Electric ComPact NSX100F (model LV438600) is a high-performance AC/DC circuit breaker engineered for industrial automation and distribution applications. This 2-pole fixed circuit breaker delivers a breaking capacity of 36 kA at 415 VAC, making it ideal for demanding control panel installations across North America, Europe, and Asia. Built to international standards including IEC 60947-2, the ComPact NSX100F combines compact design with robust protection, optimizing both space and operational safety in modern industrial environments.

Schneider Electric ComPact NSX100F Features & Benefits

  • 100 A rated thermal-magnetic trip unit (TMD) with adjustable overload and fixed magnetic protection
  • Compact footprint (105 × 161 × 86 mm) reduces panel space requirements
  • Dual voltage capability: 690 VAC 50/60 Hz and 500 V DC operation
  • 36 kA breaking capacity at 415 VAC ensures superior short-circuit protection
  • Compliant with IEC 60947, CCC, EAC, and marine specifications
  • Part of Schneider Electric EcoStruxure Power architecture for integrated automation

Schneider Electric ComPact NSX100F Specifications & Datasheet

Access the official ComPact NSX100F technical data to ensure compatibility with your system architecture. Key specifications include a 100 A rating at 40°C, operational voltage range of 690 VAC 50/60 Hz with 500 V DC support, and mechanical durability of 50,000 cycles. The TMD trip unit provides short-time pickup at 800 A with fixed short-time delay. Front connection points on both sides enable flexible panel mounting on a standard backplate.

Schneider Electric ComPact NSX100F Applications in Industrial Automation

This circuit breaker is commonly used in industrial automation, process control, machine automation, and factory control panels worldwide. It protects critical circuits in production line systems, motor control centers, and motion control installations. Engineers select the ComPact NSX100F for its reliability in harsh environments and proven performance in international industrial markets.

Schneider Electric ComPact NSX100F Price & Worldwide Availability

View Schneider Electric ComPact NSX100F pricing, availability, and stock status for bulk orders with real-time updates. LeadTime.ca supplies genuine OEM circuit breakers with fast global dispatch and export-ready documentation for worldwide customers. Contact our sales team for competitive quotes on single units or high-volume industrial procurement.

Why Buy Schneider Electric Products from LeadTime.ca

Every product on LeadTime.ca is genuine, authentic original OEM, and factory-tested, sourced from verified suppliers. We specialize in industrial automation components and serve as a trusted worldwide industrial parts distributor in Canada and the United States. Fast worldwide shipping available across North America, Europe, Asia, and international markets ensures your critical components arrive on schedule.
