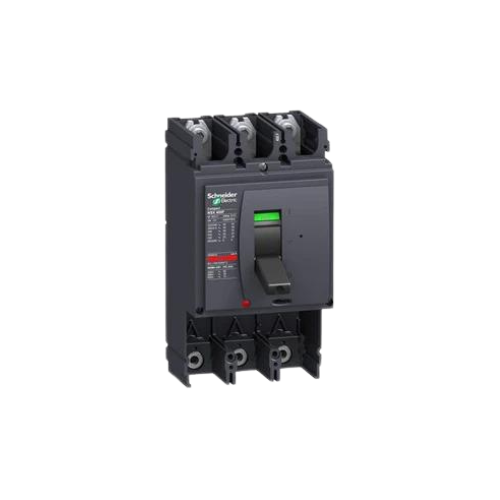

Overview of Schneider LV432814 Compact NSX630S Circuit Breaker

The Schneider LV432814 is a 3-pole circuit breaker basic frame from the Compact NSX630S range. It is rated for 630 amps and operates at a network frequency of 50/60 Hz. With a breaking capacity of 100 kA at 415 V AC, this breaker offers high performance and reliability without an integrated trip unit. It is compatible with various trip units, making it suitable for customizable protection solutions.

Key Features of Schneider LV432814

  • Current Rating: 630 A suitable for high power industrial applications.
  • Breaking Capacity: 100 kA at 415 V AC provides superior fault interruption capability.
  • Three Poles: 3-pole design for comprehensive protection in three-phase systems.
  • Modular Design: Basic frame design allows fitting with various compatible trip units.
  • High Voltage Compatibility: Operational up to 690 V AC with insulation rated for 800 V AC.
  • Durability: Designed for long mechanical and electrical service life in demanding environments.
  • Standards Compliance: Conforms to IEC 60947, UL, CSA, CCC, EAC, and marine certifications.

Technical Specs

Specification Details
Model Number LV432814
Current Rating 630 A (at 40°C)
Number of Poles 3
Breaking Capacity (Icu) 100 kA at 415 V AC
Rated Insulation Voltage (Ui) 800 V AC
Rated Operational Voltage (Ue) 690 V AC
Rated Impulse Withstand Voltage (Uimp) 8 kV
Mounting Fixed
Dimensions (WxHxD) 140 mm x 255 mm x 110 mm
Operating Temperature -25 to 70 °C

Applications / Use Case

The LV432814 breaker basic frame is ideal for electrical distribution in industrial plants, large commercial buildings, and marine applications. Its high breaking capacity and modular design allow for flexible customization of protective devices based on system requirements.

Schneider Electric supports this product with extensive technical assistance and warranty coverage.
