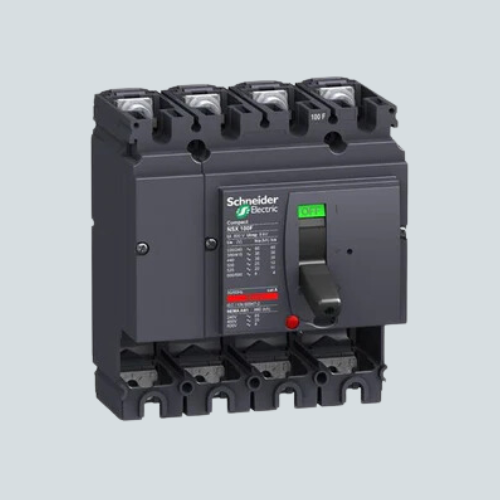

Overview of Schneider LV429008 Compact NSX100F Basic Frame

The Schneider LV429008 is a 4-pole basic frame circuit breaker from the Compact NSX100F range. It is rated for 100 A and designed for fixed mounting without an integrated trip unit. It is engineered to optimize space and deliver high breaking capacity, suitable for standard and specific electrical distribution applications up to 690 V AC.

Key Features of Schneider LV429008

  • Current Rating: 100 A for reliable protection in electrical panels.
  • Nominal Voltage: 690 V AC operational voltage, compatible with high voltage networks.
  • Four Poles: Supports 4-pole systems for comprehensive circuit protection.
  • High Breaking Capacity: 36 kA at 415 V AC (50/60 Hz), suitable for demanding industrial environments.
  • Compact Design: Compact frame optimized for space-saving installations.
  • Durability: Up to 50,000 mechanical cycles, and high electrical endurance.
  • Standards Compliance: Complies with IEC 60947, UL 508, CSA, CCC, EAC, and marine specifications.

Technical Specs

Specification Details
Model Number LV429008
Current Rating 100 A
Number of Poles 4
Rated Operational Voltage 690 V AC (limited to 440 V with earth-leakage protection)
Breaking Capacity (Icu) 36 kA at 415 V AC
Mounting Type Fixed
Connection Type Bolt-on
Protection Type Without trip unit
Dimensions (WxHxD) 140 mm x 161 mm x 86 mm
Ingress Protection IP40
Mechanical Durability 50,000 cycles
Electrical Durability 10,000 to 50,000 cycles depending on voltage and usage
Operating Temperature -25 to 70 °C

Applications / Use Case

The LV429008 basic frame breaker is suitable for electrical distribution in industrial, commercial, and marine environments requiring high performance and compliance with international standards.

Schneider Electric provides technical support and warranty to ensure optimal usage of their products.
