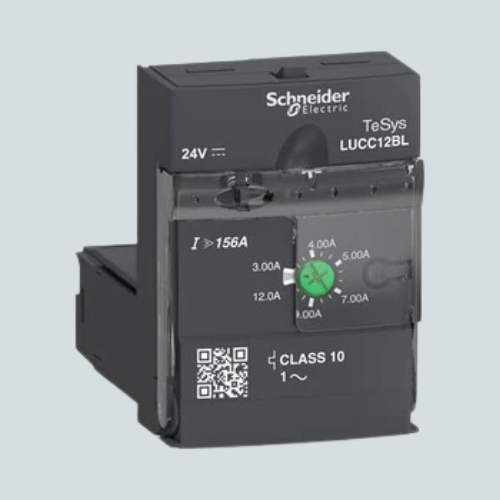

Overview of Schneider LUCC12BL Advanced Control Unit

The Schneider LUCC12BL is a TeSys U advanced control unit designed for single-phase motor protection and diagnostics. It supports adjustable motor currents ranging from 3 to 12 amps and features Class 10 thermal overload tripping. This unit operates on a 24 V DC coil, providing robust protection and real-time monitoring for motors up to 2.2 kW at 400-440 V AC, suitable for industrial and HVAC applications.

Key Features of Schneider LUCC12BL

  • Current Adjustment: Motor current adjustable between 3 and 12 A for flexible motor protection.
  • Thermal Overload Protection: Class 10 overload relay for reliable motor safety.
  • Diagnostic Functions: Integrated diagnostics to monitor motor health and faults.
  • Single-Phase Motor Support: Compatible with 1-phase motors operating up to 2.2 kW at 400-440 V AC.
  • Coil Voltage: 24 V DC for control circuit compatibility.
  • Modular Design: Plug & play unit designed to fit TeSys U power bases for easy maintenance and replacement.
  • Compliance: Meets IEC 60947-6-2, UL, CSA, and CE standards ensuring global safety and quality.

Technical Specs

Specification Details
Model Number LUCC12BL
Motor Current Range 3 to 12 A (adjustable)
Thermal Trip Class Class 10
Coil Voltage 24 V DC
Motor Type Single-phase
Power Rating Up to 2.2 kW at 400-440 V AC
Mounting TeSys U power bases (LUB120, LUB320, LUB380)
Operating Temperature -25 to 55 °C
Standards IEC 60947-6-2, UL, CSA, CE

Applications / Use Case

The LUCC12BL control unit is suited for motor protection in industrial machinery, HVAC systems, and automated equipment where single-phase motors need reliable safety and diagnostics.

Schneider Electric provides warranty and dedicated support for long-lasting operational efficiency.
