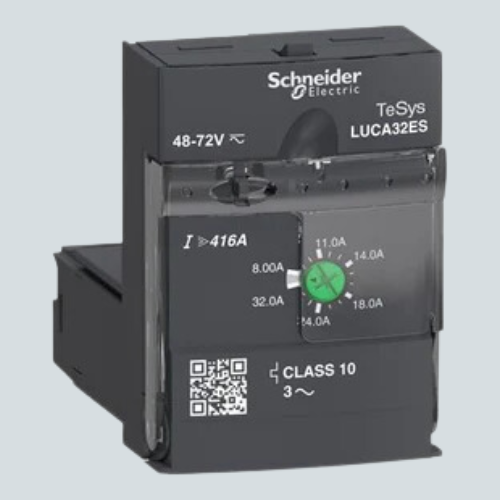

Overview of Schneider LUCA32ES Standard Control Unit

The Schneider LUCA32ES is a TeSys U series standard control unit designed for motor protection and control. It supports motor currents adjustable from 8 to 32 amps and provides Class 10 thermal-magnetic protection. With coil voltage compatibility of 48 to 72 V AC/DC, it ensures reliable overload and short-circuit protection, suitable for a wide range of industrial motor applications.

Key Features of Schneider LUCA32ES

  • Motor Current Range: Adjustable from 8 to 32 A supporting versatile motor sizes.
  • Class 10 Thermal Protection: Reliable overload trip with compliance to Class 10 standards.
  • Thermal Magnetic Protection: Integrates protection against both overload and short circuit.
  • Coil Voltage: Operates on 48 to 72 V AC/DC for flexible control circuit design.
  • Compact and Modular: Plug-in design fits on 45 mm wide power base, mountable on panel or 35 mm DIN rail.
  • Wide Temperature Range: Operates reliably between -25 to 70°C for harsh industrial environments.
  • Standards Compliance: Meets IEC 60947-6-2, UL 508, CSA, CE, and other global certifications.

Technical Specs

Specification Details
Model Number LUCA32ES
Current Adjustment Range 8 to 32 A
Thermal Trip Class Class 10
Coil Voltage 48-72 V AC/DC
Poles 3-pole motor protection
Mounting Panel or 35 mm DIN rail
Dimensions (HxWxD) 66 mm x 45 mm x 60 mm
Operating Temperature -25 to 70 °C
Standards IEC 60947-6-2, UL 508, CSA, CE

Applications / Use Case

The LUCA32ES standard control unit provides motor overload and short-circuit protection in industrial automation, manufacturing machinery, and HVAC systems. Its modular design simplifies maintenance and replacement, ensuring continuous uptime.

Schneider Electric offers extensive support and warranty for reliable performance.
