Buy Schneider Electric LC2K0901M7 – Product Overview

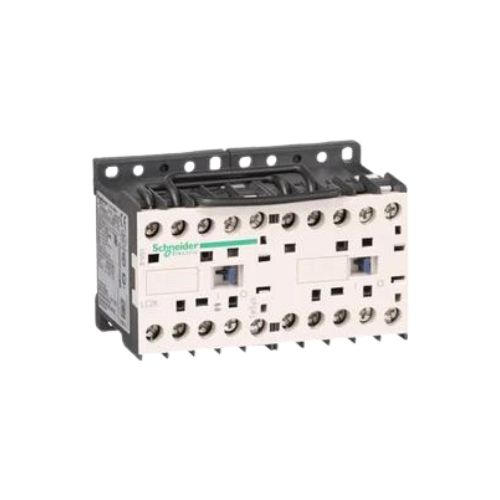

The Schneider Electric LC2K0901M7 is a compact TeSys K reversing contactor designed for reliable motor control in industrial automation applications. Rated at 9A AC-3 with a 220–230 VAC coil, this IEC-compliant contactor delivers 4 kW switching capacity at 400V, making it ideal for three-phase motor reversing circuits. Built for durability with 5 million mechanical cycles, the LC2K0901M7 offers pre-wired reversing configuration, mechanical interlock protection, and screw clamp terminals for secure installation. Order genuine OEM stock from LeadTime.ca, a trusted worldwide industrial parts distributor serving North America, Europe, and Asia.

Schneider Electric LC2K0901M7 Features & Benefits

Compact 3-pole reversing contactor with instantaneous 1 NC auxiliary contact for signalling circuits. Operates at 50/60 Hz with low inrush power (30 VA at 20°C) and minimal heat dissipation (1.3 W). IP20 enclosure rated for –25 to +50°C operating temperature. Pre-wired reversing circuit eliminates field wiring errors. Mechanical durability rated for 3,600 cycles per hour with 5 million total mechanical cycles. Meets UL 508, IEC 60947-4-1, and CSA C22.2 standards. Fast global shipping available from our Canada and United States supplier network.

Schneider Electric LC2K0901M7 Specifications & Datasheet

Contact configuration: 3NO main contacts, 1NC auxiliary. Coil voltage: 220–230 VAC. Rated current: 9A AC-3. Power rating: 4 kW @ 400V, 660–690 VAC. Dimensions: 2.28 in H × 3.54 in W × 2.24 in D. Terminal type: Screw clamp with 1.3 N·m tightening torque. Operating time: 10–20 ms coil de-energisation. Insulation resistance: >10 MΩ. Mechanical interlock and non-overlap distance: 0.5 mm. Access the official Schneider Electric LC2K0901M7 datasheet for complete configuration and compatibility details before installation.

Schneider Electric LC2K0901M7 Applications in Industrial Automation

Widely deployed in process control systems, machine automation, production line panels, and factory reversing motor circuits. Suitable for HVAC systems, pump control, and conveyor belt applications requiring bi-directional motor operation. Export-ready automation component stocked for immediate worldwide delivery.

Schneider Electric LC2K0901M7 Price & Worldwide Availability

Check Schneider Electric LC2K0901M7 pricing and real-time stock status online. All inventory sourced from verified suppliers and available for fast international dispatch. Bulk export pricing and global shipping quotes provided upon request.

Why Buy Schneider Electric Products from LeadTime.ca

Every genuine Schneider Electric product on LeadTime.ca is factory-tested OEM stock sourced from authorized distributors. We deliver worldwide across North America, Europe, Asia, and international industrial markets with competitive lead times and transparent pricing. Order online or contact us for bulk quotes and export arrangements.
