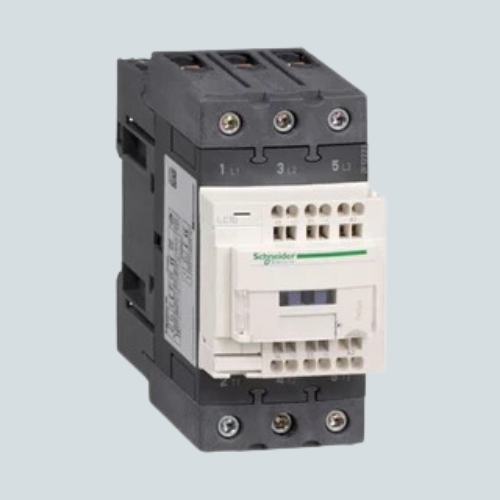

Overview of Schneider LC1D50A3BD Contactor

The Schneider LC1D50A3BD is a high-performance 3-pole TeSys Deca contactor designed for industrial and HVAC motor control applications. It features a 24 V DC coil and is rated for 50 amps AC-3 duty at up to 440 V, enabling control of motors with power ratings up to 40 HP at 480 V. This contactor delivers reliable switching performance and long operational life in demanding environments.

Key Features of Schneider LC1D50A3BD

  • High Current Rating: Rated 50 A AC-3 and 80 A AC-1 for a range of motor and resistive loads.
  • 24 V DC Coil: Provides steady operation in DC control circuits with integrated transient suppressor.
  • Durability: Designed for 10 million mechanical cycles and 1.45 million electrical AC-3 cycles.
  • Reliable Contact Configuration: 3 normally open (NO) contacts ideal for three-phase motor control.
  • Compact and Flexible: Compact body with screw spring terminals for secure and fast wiring.
  • Wide Certification: Complies with IEC, UL, and CSA standards ensuring safety and global acceptance.

Technical Specs

Specification Details
Model Number LC1D50A3BD
Current Rating 50 A AC-3, 80 A AC-1
Coil Voltage 24 V DC
Poles 3 (3 Normally Open contacts)
Horsepower Rating 40 HP at 480 V (3-phase motor)
Mechanical Durability 10 million cycles
Electrical Durability (AC-3) 1.45 million cycles
Terminal Type Screw spring terminals, finger-safe
Certifications IEC, UL, CSA

Applications / Use Case

This contactor is suited for industrial motor control, HVAC systems, pumps, and machinery requiring high current switching with reliable durability and safety compliance.

Schneider Electric supports the LC1D50A3BD with extensive warranties and technical support programs.
