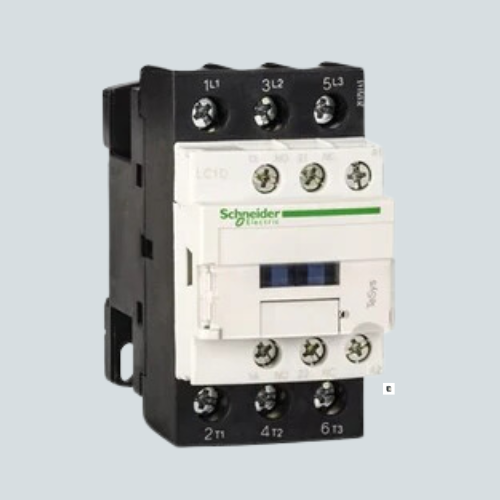

Overview of Schneider LC1D25R7 Contactor

The Schneider LC1D25R7 is a reliable 3-pole IEC contactor designed for motor control applications. Rated for 25 amps AC-3 and 40 amps AC-1, it easily handles loads up to 7.5 HP at 230 V and 15 HP at 460 V. The contactor features a 440 V 50/60 Hz AC coil and is part of Schneider’s popular TeSys D-line, known for its durability and broad accessory compatibility.

Key Features of Schneider LC1D25R7

  • High Current Rating: 25 A AC-3 and 40 A AC-1 for robust motor control.
  • Powerful Motor Control: Supports motor loads up to 15 HP at 460 V and 7.5 HP at 230 V.
  • Auxiliary Contacts: Includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact for control circuit flexibility.
  • Screw Terminals: IP20 finger-safe screw terminals for easy, secure wiring.
  • Versatile Mounting: Compatible with standard 35 mm DIN rail or panel mounting.
  • Wide Accessory Range: Supports auxiliary contact blocks, surge suppressors, timers, and overload relays for expanded functionality.

Technical Specs

Specification Details
Model Number LC1D25R7
Current Rating 25 A (AC-3), 40 A (AC-1)
Coil Voltage 440 V AC, 50/60 Hz
Horsepower Rating 7.5 HP @ 230 V, 15 HP @ 460 V
Poles 3 (3 Normally Open contacts)
Auxiliary Contacts 1 NO + 1 NC base mounted
Mounting DIN rail or panel
Terminal Type Screw terminals, IP20 finger-safe

Applications / Use Case

The LC1D25R7 contactor is ideal for controlling three-phase motors in industrial and HVAC applications, including pumps, compressors, and fans requiring reliable switching and overload protection.

Schneider Electric guarantees product quality with comprehensive technical support and warranty services.
