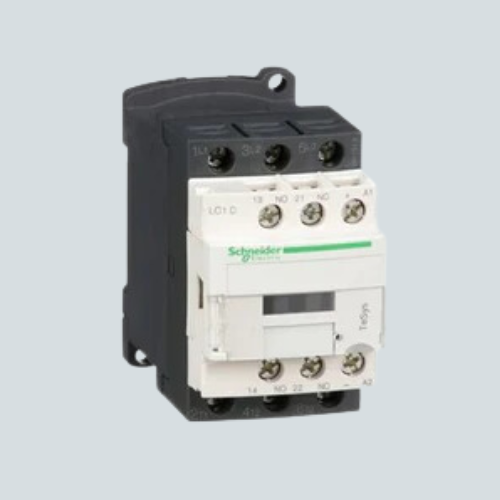

Overview of Schneider LC1D126BD TeSys D Contactor
The Schneider LC1D126BD is a 3-pole (3 NO) contactor from the TeSys D series designed for medium-duty motor control applications. Rated for 12A AC-3 at 440V, it supports motor powers up to 7.5 kW at 400V. This contactor features a low consumption 24V DC coil with a built-in transient suppressor and comes with 1 normally open and 1 normally closed auxiliary contact for extended control functionality.
Key Features of Schneider LC1D126BD TeSys D Contactor
- 3 Poles with 3 Normally Open Contacts – standardized configuration for motor starters.
- AC-3 Rated Current: 12A at 440V – suitable for medium motor loads.
- Low Consumption 24V DC Coil – reduces operational power consumption and heat emission.
- Built-in Transient Suppressor Module – protects the coil from voltage spikes.
- Auxiliary Contacts: 1 NO + 1 NC (mirror certified) – provides reliable signaling and control.
- Lug-Ring Terminals – for secure, easy wiring connections with 8mm external diameter cable compatibility.
- High Mechanical Endurance – 3600 cycles/hour at 60°C operational temperature.
- Compact Dimensions: 45 mm width, 95 mm depth, 77 mm height – space-saving design.
- Compliance with IEC 60947-4-1 and global standards – assures quality and safety.
Technical Specs of Schneider LC1D126BD TeSys D Contactor
| Specification | Details |
|---|---|
| Model | LC1D126BD |
| Poles | 3P (3 Normally Open) |
| Rated Current (AC-3) | 12 A at 440 V |
| Motor Power | 7.5 kW at 400 V AC |
| Coil Voltage | 24 V DC (low consumption) |
| Auxiliary Contacts | 1 NO + 1 NC |
| Terminals | Lug-Ring, 8 mm external diameter cable |
| Mechanical Endurance | 3600 cycles/hour at 60°C |
| Dimensions (WxDxH) | 45 x 95 x 77 mm |
| Operating Temperature Range | -5°C to 60°C |
| Standards | IEC 60947-4-1, UL, CSA |
Applications / Use Case
The LC1D126BD contactor is used for motor control in industrial and commercial HVAC, manufacturing, and automation systems. It provides reliable switching performance, energy-efficient coil operation, and auxiliary contact support for secondary control and signaling.
Schneider Electric ensures product quality and global certification, supporting sustainable and dependable industrial automation.
-
