LC1D096M7

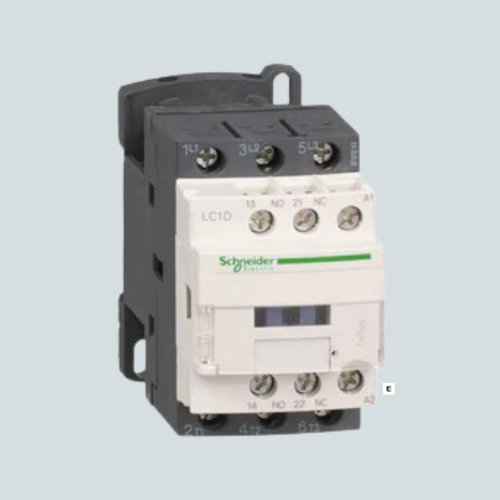

Overview of Schneider LC1D096M7 TeSys D Contactor

The Schneider LC1D096M7 is a 3-pole (3 NO) TeSys D contactor designed for motor control with a coil voltage of 220 V AC at 50/60 Hz. It supports a rated current of 9 A (AC-3 rated current at 440 V) and is suitable for 5.5 kW motors at 690 V. This contactor includes 1 normally open and 1 normally closed auxiliary contact and utilizes lug-ring terminals for secure connection.

Key Features of Schneider LC1D096M7 TeSys D Contactor

• 3 Poles with 3 Normally Open (NO) contacts – standard for motor control and power switching.
• Rated Current: 9 A AC-3 at 440 V – suitable for medium-power motor applications.
• Coil Voltage: 220 V AC (50/60 Hz) – common industrial control voltage.
• Auxiliary Contacts: 1 NO + 1 NC – provides additional control and signaling capability.
• Lug-Ring Terminal Connection – ensures reliable and easy wiring.
• Operating Cycles: Up to 3600 cycles per hour – durable for frequent switching.
• Compact Size: 45 mm width x 86 mm depth x 77 mm height – space-efficient design.
• Operating Temperature Range: -5°C to 60°C – suitable for various industrial environments.
• Compliance: IEC 60947-4-1 and other standards for quality and safety assurance.

Technical Specs of Schneider LC1D096M7 TeSys D Contactor

Applications / Use Case

The LC1D096M7 contactor is suited for industrial motor control applications, including HVAC, manufacturing, and automation systems. It offers reliable switching, auxiliary contact functions, and compliance with industry standards for diverse industrial environments.

Schneider Electric guarantees product durability and performance backed by global quality certifications.
