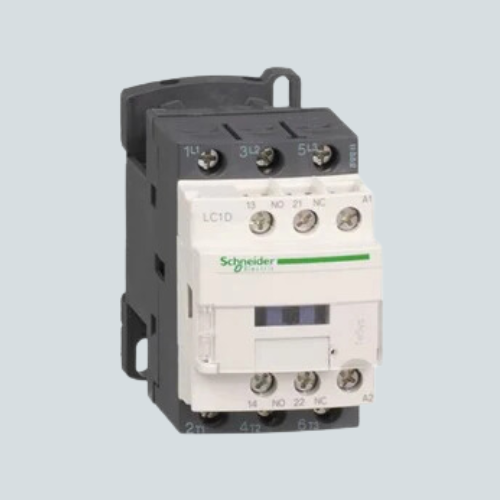

Overview of Schneider LC1D096BL TeSys D Contactor

The Schneider LC1D096BL is a 3-pole (3 NO) contactor from the TeSys D series designed for industrial motor control applications. It is rated for 9A AC-3 at 440V and supports motor power up to 5 HP at 480V. The contactor features a low consumption 24V DC coil, ensuring energy-efficient operation. Its compact design and robust build make it suitable for various industrial and HVAC applications.

Key Features of Schneider LC1D096BL TeSys D Contactor

  • 3 Poles with 3 Normally Open (NO) contacts – standard motor control configuration.
  • AC-3 Rated Current: 9A at 440V – supports medium power motors up to 5 HP.
  • Low Consumption 24V DC Coil – reduces power usage and heat generation.
  • 1 Normally Open and 1 Normally Closed Auxiliary Contacts – for control and signaling.
  • Lug Ring Terminal Connections – secure and easy wiring installation.
  • Open-Style Construction – facilitates heat dissipation.
  • Designed to Meet IEC 60947-4-1 Standards – ensuring global compliance and reliability.
  • Operating Temperature Range: -5°C to 60°C – suitable for most industrial environments.

Technical Specs of Schneider LC1D096BL TeSys D Contactor

Specification Details
Model LC1D096BL
Number of Poles 3 (3 NO)
AC-3 Rated Current 9 A at 440 V
Motor Power Rating 5 HP at 480 V
Coil Voltage 24 V DC (low consumption)
Auxiliary Contacts 1 NO + 1 NC
Connection Type Lug Ring terminals
Operating Temperature -5°C to 60°C
Mounting DIN rail or panel mounting
Standards IEC 60947-4-1
Dimensions (WxDxH) 45 x 95 x 77 mm
Weight Approximately 540 g

Applications / Use Case

The LC1D096BL contactor is used in industrial and HVAC motor control applications. It provides reliable switching, energy-saving coil operation, and auxiliary contacts for extended control functions. Its worldwide compliance and robust design make it a versatile choice for motor starters and automation systems.

Schneider Electric guarantees quality and performance backed by international standards.
