LAD6K10F

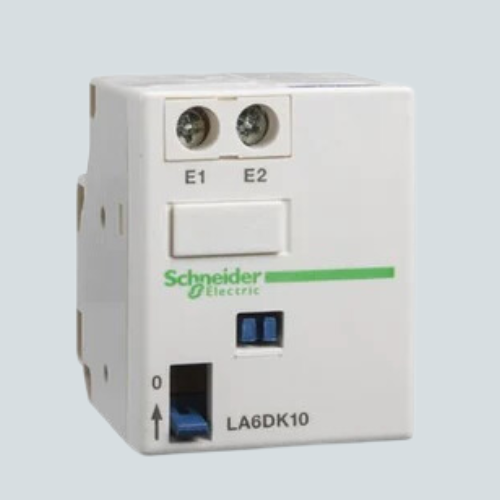

Overview of Schneider LAD6K10F Mechanical Latch Contact Block

The Schneider LAD6K10F is a mechanical latch contact block designed for use with TeSys Deca contactors and control relays. It operates at 110/127V AC/DC and provides reliable electrical latching and unlatching via control voltage pulses or manual operation. This accessory enhances the automation and control capabilities of contactors by enabling latch control with high mechanical endurance and safety features.

Key Features of Schneider LAD6K10F Mechanical Latch Contact Block

• Voltage Rating: 110/127V AC/DC – compatible with standard industrial control voltages.
• Electrical Latching – latches with 100ms pulse in AC, 250ms in DC for secure operation.
• Manual Unlatching – provides easy manual override capability.
• Front Snap-On Mount – simple installation on compatible TeSys contactors.
• IP2X Electrical Protection – ensures operator safety by preventing contact with live parts.
• High Operating Rate – supports up to 1200 mechanical cycles per hour.
• Certified to IEC 60947-5-1 – meets international standards for control devices.
• Wide Operating Temperature Range – -22°C to 55°C suited for industrial environments.

Technical Specs of Schneider LAD6K10F Mechanical Latch Contact Block

Applications / Use Case

The LAD6K10F mechanical latch contact block is used in industrial control systems to provide latching control for TeSys Deca contactors and relays. It enhances automation processes by enabling electrical latching and manual reset functions, all while maintaining safety and compliance.

Schneider Electric ensures product reliability and international quality through rigorous testing and certification.
