HMIG5U

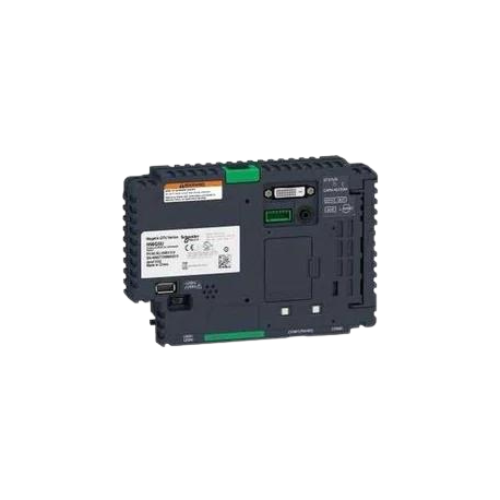

Overview of Schneider HMIG5U Open Box for Universal Panel

The Schneider HMIG5U is a base unit from the Harmony GTU range designed as an open box for universal industrial panel integration. It features an Intel x86 1.33 GHz processor, 2GB RAM, and supports Windows 7 Embedded operating system. This unit is built for IoT-ready high-performance HMI applications and provides versatile communication options including Ethernet, USB, and serial ports.

Key Features of Schneider HMIG5U Open Box

• Intel x86 1.33 GHz Processor – Offers robust computing power for complex automation tasks.
• Memory: 2GB RAM and 32GB CFast card storage – supports extensive data handling and storage.
• Communication Ports – Two Ethernet ports, multiple serial ports (RS-232C, RS-422, RS-485), USB host and device ports.
• Operating System – Windows Embedded 7 pre-installed for industrial HMI applications.
• Compact Dimensions – 188 mm width, 45 mm depth, 131 mm height designed for universal panel mounting.
• Robust Certifications – ATEX, CE, UL, CULus, IEC, and other global safety and performance standards.
• Supports Modbus, Modbus TCP/IP, and Uni-Telway protocols – enabling flexible industrial networks.

Technical Specs of Schneider HMIG5U Open Box

Applications / Use Case

The HMIG5U is suitable for OEMs and system integrators requiring a powerful, modular open-box controller for building custom universal panels in industrial automation projects. It supports complex visualization, control, and data acquisition tasks in manufacturing and process control.

Schneider Electric guarantees robust performance with global certification and ongoing product support.
