GV2P06

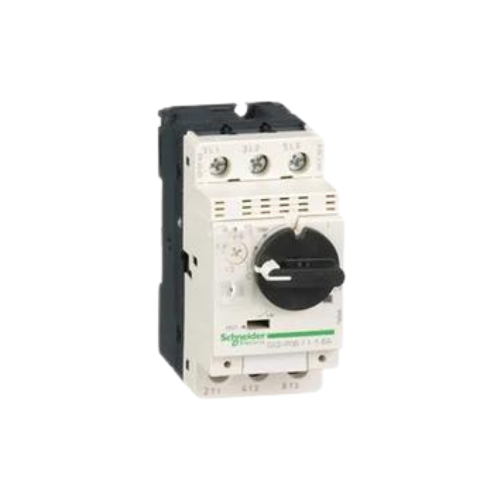

Overview of Schneider GV2P06 Motor Circuit Breaker

The Schneider GV2P06 is a 3-pole motor circuit breaker from the TeSys GV2 series, designed for motor protection with a thermal-magnetic trip unit adjustable from 1 to 1.6 A. It is suitable for low-power motors up to 0.75 kW at 690 V AC and features a robust design for reliable overload and short-circuit protection in industrial applications.

Key Features of Schneider GV2P06 Motor Circuit Breaker

• Adjustable Thermal-Magnetic Protection – trip setting range of 1 to 1.6 A for precise motor current protection.
• High Breaking Capacity – 100 kA across a range of voltages ensuring robust fault clearing.
• Rotary Knob Control – easy manual operation for motor start and stop.
• Screw Clamp Terminals – secure wiring connections with support for multiple cable sizes.
• Mounting Flexibility – clips onto 35 mm DIN rails or panel-mounted with screws.
• Compact and Durable – dimensions of 89 x 45 x 97 mm suitable for tight spaces.
• Compliance with International Standards – IEC 60947-2, IEC 60947-4-1, UL, CSA, ATEX certifications.
• Operating Temperature – from -20°C to 60°C to suit harsh industrial environments.

Technical Specs of Schneider GV2P06 Motor Circuit Breaker

Applications / Use Case

The GV2P06 motor circuit breaker is designed for low-power motor protection in industrial applications such as manufacturing equipment, conveyors, and HVAC systems. It helps prevent motor damage from overloads and short circuits, ensuring operational safety and equipment longevity.

Schneider Electric maintains high reliability standards with multi-certification compliance, suitable for a range of global applications.
