Buy Schneider Electric BMXAMI0810 – Product Overview

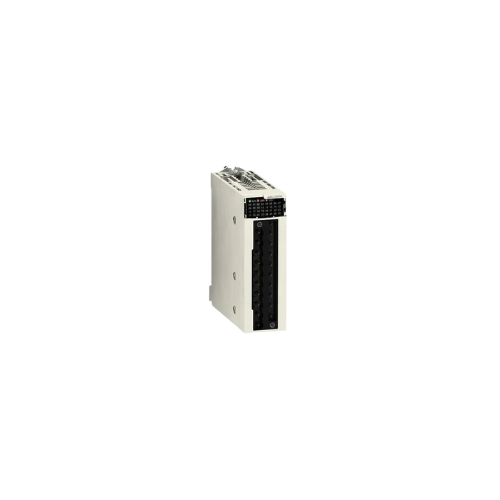

The Schneider Electric BMXAMI0810 is an isolated analog input module designed for the Modicon X80 industrial automation platform. This 8-channel analog input module delivers high-precision data acquisition with 16-bit analog-to-digital conversion, making it ideal for applications requiring accurate signal processing in harsh industrial environments. Built with robust isolation between channels and comprehensive signal filtering, the BMXAMI0810 ensures reliable measurement of voltage and current signals across manufacturing facilities, process control systems, and automation infrastructure worldwide.
Schneider Electric BMXAMI0810 Features & Benefits
- 8 isolated analog input channels with high-level input capability
- 16-bit analog-to-digital conversion with 15-bit resolution plus sign for precise measurements
- Multiple input types: ±20 mA, 0–20 mA, 4–20 mA, ±10 V, ±5 V, 0–10 V, 0–5 V, 1–5 V
- Fast read cycle time of 1 ms + 1 ms per channel; nominal cycle time 9 ms for all channels
- First-order digital filtering to eliminate noise and enhance data integrity
- IP20 protection rating for dust and accidental contact resistance
- 300 V DC isolation between channels; 1400 V DC isolation between channels and ground
- Measurement error less than 0.1% of full scale across operating temperature range
- 28-way single connector for seamless integration into automation systems
Schneider Electric BMXAMI0810 Specifications & Datasheet
| Specification | Value |
|---|---|
| Analog Input Channels | 8 |
| Analog/Digital Conversion | 16 bits |
| Input Impedance | 10 MΩ (voltage mode); 250 Ω + protective resistor (current mode) |
| Measurement Error | ≤0.1% of full scale ±10 V, 0–60 °C |
| Fast Read Cycle Time | 1 ms + 1 ms per channel |
| Nominal Read Cycle Time | 9 ms for 8 channels |
| Operating Temperature | 0–60 °C |
| Electrical Connection | 1 connector, 28 ways |
| IP Protection | IP20 |
| Product Weight | 0.165 kg |
| Current Consumption | 150 mA at 3.3 V DC; 45 mA at 24 V DC |
Schneider Electric BMXAMI0810 Applications in Industrial Automation
This module is commonly used in industrial automation, process control, machine automation, production line systems, factory control panels, and motion control systems worldwide. The BMXAMI0810 excels in environments requiring high-precision analog signal measurement, including manufacturing plants, chemical processing facilities, food and beverage production, pharmaceutical manufacturing, and energy distribution networks. Its isolated channels prevent signal crosstalk, making it essential for multi-signal monitoring in complex automation infrastructures across North America, Europe, Asia, and international industrial markets.
