ATV930D22N4 22KW

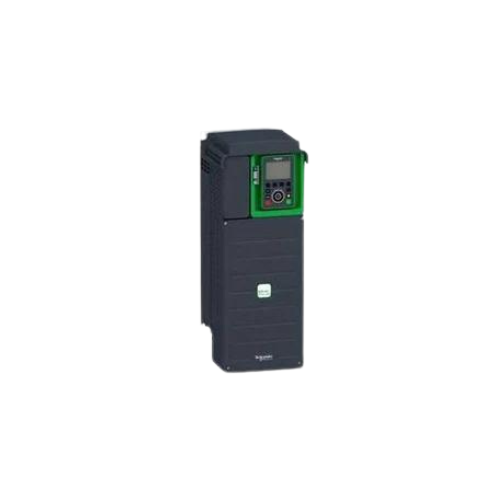

Overview of Schneider ATV930D22N4 22kW Variable Speed Drive

The Schneider ATV930D22N4 is a 22kW variable speed drive designed for controlling 3-phase motors in industrial environments. Operating at 380V to 480V AC, it supports motor ratings up to 30hp for slight overload and 25hp for heavy overload conditions. This drive is built to deliver precise motor control, reduce energy consumption, and integrate easily into automation systems with advanced communication protocols.

Key Features of Schneider ATV930D22N4 22kW Variable Speed Drive

• Power Rating: 22kW (30hp slight overload, 25hp heavy overload) – supports a range of industrial motor sizes.
• Voltage Supply: 380-480V AC, three-phase – adaptable to common industrial power supplies.
• Braking Unit Included – effective management of motor deceleration and safety.
• Communication Protocols: Modbus, EtherNet/IP, Modbus TCP – enables integration with modern automation networks.
• IP21 Protection Rating – suitable for wall mounting indoors with basic environmental protection.
• Embedded Functions: PID regulator and power/energy monitoring – helps optimize motor operation and energy use.
• Frequency Output Range: 0.1 to 599Hz – allowing flexible motor speed control.
• Multiple Inputs/Outputs: 8 digital inputs, 4 digital outputs, 3 analog inputs, 2 analog outputs – for versatile control and customization.

Technical Specs of Schneider ATV930D22N4 22kW Variable Speed Drive

Applications / Use Case

The Schneider ATV930D22N4 is suited for use in industrial processes such as oil and gas, mining, food and beverage, water treatment, and other sectors requiring reliable motor speed and torque control. It supports both synchronous and asynchronous motors, with master/slave coupling control for complex systems.

Schneider Electric provides dependable build quality and support for this product, ensuring long service life and industrial-grade performance.
