Buy Schneider ATV71HD18N4Z – Product Overview

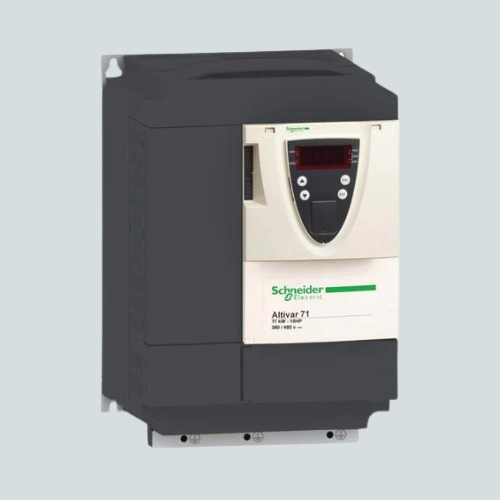

The Schneider ATV71HD18N4Z is an 18.5 kW (25 HP) variable speed drive from the Altivar 71 series, engineered for demanding industrial automation applications. This heavy-duty AC drive operates at 380–480 V, 3-phase supply and delivers precise motor control with integrated EMC filtering. Designed for complex machinery requiring reliable performance, the ATV71HD18N4Z combines advanced frequency control with proven Schneider Electric quality. Order now for worldwide delivery and benefit from fast international dispatch.
Schneider ATV71HD18N4Z Features & Benefits
- 18.5 kW rated power; 41 A continuous output current at 4 kHz nominal switching frequency
- Wide output frequency range (0.1–599 Hz) for flexible motor speed control
- Torque accuracy: ±15% open-loop, ±5% closed-loop with encoder feedback
- Transient overtorque capability: 170% for 60 seconds, 220% for 2 seconds
- Integrated EMC filter reduces electromagnetic interference in production environments
- Multiple communication protocols: Modbus and CANopen for seamless integration
- Compact design without remote graphic terminal for space-constrained installations
- Thermal protection, motor phase break monitoring, and insulation resistance testing
Schneider ATV71HD18N4Z Specifications & Datasheet
| Parameter | Specification |
|---|---|
| Rated Power | 18.5 kW / 25 HP |
| Supply Voltage | 380–480 V, 3-phase |
| Line Current | 37.5 A (480 V), max transient 67.7 A (2 s) |
| Output Frequency | 0.1–599 Hz |
| Switching Frequency | 4 kHz nominal |
| Speed Range | 1:100 open-loop; 1:1000 closed-loop with encoder |
| Communications | Modbus (4.8–38.4 kbps), CANopen (20 kbps–1 Mbps) |
| Motor Cable Length | 50 m shielded; 100 m unshielded |
Access the official Schneider ATV71HD18N4Z specifications and technical data before installation to ensure compatibility and full configuration details.
Schneider ATV71HD18N4Z Applications in Industrial Automation
This Schneider variable speed drive is commonly used in industrial automation, process control, machine automation, production line systems, factory control panels, and motion control systems worldwide. The ATV71HD18N4Z excels in applications requiring precise speed and torque regulation, such as pump drives, fan systems, compressor control, conveyor management, and integrated manufacturing systems. Its robust design and multiple feedback modes make it ideal for both open-loop and closed-loop automation environments across North America, Europe, Asia, and international industrial markets.
