ATV650D90N4E

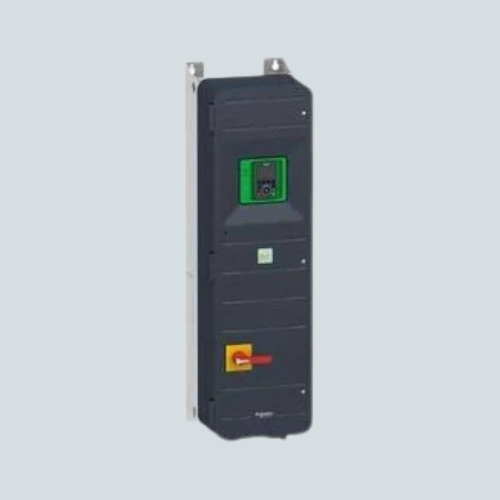

Overview of Schneider ATV650D90N4E Variable Speed Drive

The Schneider ATV650D90N4E is a robust variable speed drive from the Altivar Process ATV600/650 series engineered for industrial motor control. It supports a power rating of 90 kW (120 HP) and operates on a 3-phase supply voltage range of 380 to 480 V. The drive features an IP55 degree of protection, making it suitable for demanding and harsh environments, with built-in communication ports for network integration.

Key Features of Schneider ATV650D90N4E Drive

• Power Rating: 90 kW (120 HP) for heavy-duty motor applications.
• Supply Voltage: Compatible with 380-480 V, 3-phase power supply.
• High Current Rating: 135.8 A continuous current capacity for reliable performance.
• Communication Ports: Three built-in RJ45 ports (1 Ethernet, 2 serial) for flexible connectivity.
• Protection Rating: IP55 ensures protection against dust and water ingress in industrial settings.
• Energy Monitoring: Integrated features for power measurement and energy management.
• Integrated Disconnect Switch: Facilitates easy and safe device isolation.
• Compact Design: Optimized for cabinet mounting with compact footprint.

Technical Specs

Applications / Use Case

The Schneider ATV650D90N4E is designed for heavy-duty industrial applications such as pumps, compressors, and conveyors. Its advanced monitoring and protection features, combined with industrial-grade IP55 enclosure, make it suitable for use in challenging environments requiring reliable motor control.

Schneider Electric offers industry-standard warranty and support for this variable speed drive, ensuring dependable operation.
