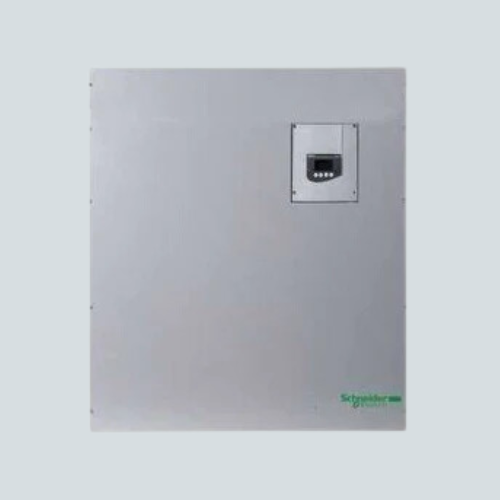

Overview of Schneider ATS48M10Y Soft Starter for Asynchronous Motors

The Schneider ATS48M10Y soft starter from the Altistart 48 series is designed for seamless control of asynchronous motors. It supports a wide supply voltage range from 208 to 690 V and motor power ratings from 250 kW to 900 kW. This soft starter features digital control and integrated motor protection functions, providing efficient motor start-up while reducing mechanical and electrical stress.

Key Features of Schneider ATS48M10Y Soft Starter

  • Wide Voltage Range: Operates on 208-690 V, 3-phase power supply.
  • High Power Capacity: Suitable for motors rated between 250 kW and 900 kW.
  • Digital Control: Allows precise start and stop with adjustable acceleration and deceleration times (1-60 seconds).
  • Comprehensive Motor Protection: Includes thermal, low current, momentary overload, and other motor protection features.
  • Communication Support: Modbus protocol for network integration and remote monitoring.
  • Control Voltage: Microprocessor supply voltage of 110-230 V.
  • Multiple I/O: Equipped with 4 digital inputs, 2 digital outputs, 3 relay outputs, and 1 analog output.
  • Installation: Vertical mounting in protective enclosures or cabinets.

Technical Specs

Specification Details
Supply Voltage 208-690 V AC, 3-phase
Motor Power Range 250 - 900 kW
Rated Current 1000 A
Acceleration / Deceleration Time Adjustable 1 to 60 seconds
Operating Temperature -10 to 40 °C
Protection Level IP00 (requires protective enclosure)
Control Voltage 110-230 V (microprocessor supply)
I/O Configuration 4 digital inputs, 2 digital outputs, 3 relay outputs, 1 analog output
Communication Modbus
Max Start Current 400% of rated current
Max Switching Cycles 10 cycles/hour

Applications / Use Case

The Schneider ATS48M10Y soft starter is ideal for controlling pumps, fans, and general purpose asynchronous motors in industrial applications. It reduces mechanical wear and energy consumption during motor startup, supporting longer machinery life and operational efficiency.

Schneider Electric provides warranty and technical support for this product as part of their comprehensive motor control solutions.
