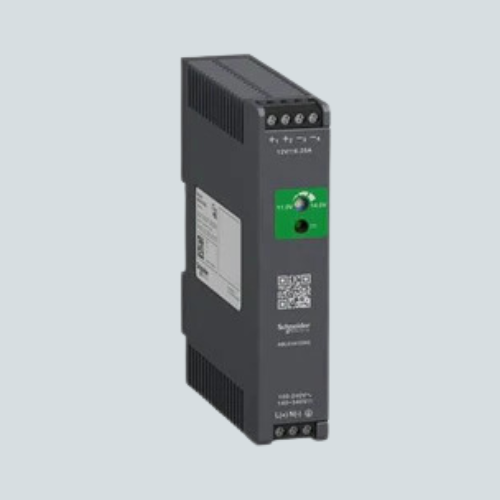

Overview of Schneider ABLS1A12062 Regulated Power Supply

The Schneider ABLS1A12062 is a compact, optimized regulated power supply designed for industrial and automation applications. It operates on a wide input voltage range of 100 to 240 V AC and outputs a stable 12 V DC at 6.2 A, delivering 75 W of power. The device features robust protection against overload and short circuits with an automatic restart function, making it reliable for control systems.

Key Features of Schneider ABLS1A12062 Power Supply

  • Wide Input Range: Accepts 100–240 V AC and 140–340 V DC, enabling versatile installation.
  • Stable Output: Provides 12 V DC at up to 6.2 A with low voltage ripple & noise.
  • High Efficiency: 87% efficiency minimizes energy loss and heat generation.
  • Protection Features: Overload and short-circuit protection with automatic recovery.
  • Compact Size: Slim profile of 27 mm width for space-saving DIN rail mounting.
  • Operating Temperature: Supports ambient temperatures up to +70 °C for demanding environments.
  • Connection Type: Screw terminal connections for secure wiring.

Technical Specs

Specification Details
Input Voltage 100 to 240 V AC, 140 to 340 V DC
Output Voltage 12 V DC
Output Current 6.2 A
Power Rating 75 W
Efficiency 87%
Voltage Ripple < 120 mV
Overload Protection Auto restart
Terminals Screw terminals
Mounting DIN rail (27 mm width)
Dimensions (HxWxD) 123.6 x 27 x 102 mm
Operating Temperature -20 to +70 °C

Applications / Use Case

The Schneider ABLS1A12062 power supply is suitable for supplying regulated DC power to control circuits, automation systems, and industrial equipment. Its protection features and compact design make it ideal for reliable, efficient power delivery in control panels.

Schneider Electric backs this product with a warranty, ensuring quality and long service life in industrial applications.
