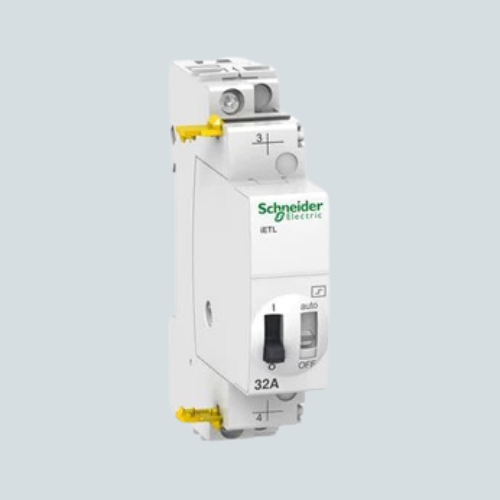

Overview of Schneider A9C32836 Acti9 iETL Extension Impulse Relay

The Schneider A9C32836 is an extension impulse relay accessory from the Acti9 iETL series. It is designed to increase the number of poles on impulse relays, supporting 1 pole with 1 normally open (NO) contact and rated for 32 A switching current. This relay operates with control voltages of 230-240 V AC or 110 V DC and is configured for DIN rail mounting, making it suitable for modular industrial control systems.

Key Features of Schneider A9C32836 Relay

  • Contact Configuration: 1 pole, 1 normally open (1NO) contact for impulse relay extension.
  • Rated Current: 32 A switching capability for diverse industrial loads.
  • Coil Voltage: Compatible with 230-240 V AC (50/60 Hz) or 110 V DC control voltage.
  • Mounting: DIN rail mount for easy and secure installation in control panels.
  • Insulation Ratings: Rated insulation voltage Ui of 440 V AC and nominal impulse withstand voltage Uimp of 6 kV.
  • Operating Frequency: Suitable for 50 Hz or 60 Hz applications.
  • Durability: Electrical durability rated for more than 100,000 operating cycles under load conditions.

Technical Specs

Specification Details
Contact Poles 1 Pole
Contact Configuration 1 Normally Open (1NO)
Rated Switching Current 32 A
Coil Voltage 230-240 V AC (50/60 Hz), 110 V DC
Rated Insulation Voltage (Ui) 440 V AC
Impulse Withstand Voltage (Uimp) 6 kV
Mounting Type DIN rail
Operating Frequency 50/60 Hz
Electrical Durability ≥ 100,000 cycles
Temperature Range -20 to 50 °C

Applications / Use Case

The Schneider A9C32836 impulse relay extension is used for expanding impulse relays in industrial control systems, enabling flexible control circuit configuration. It is ideal for motor starters, lighting control, and automation systems requiring modular relay expansion.

Schneider Electric provides this product with industry-standard warranty and support for reliable operation in industrial environments.
