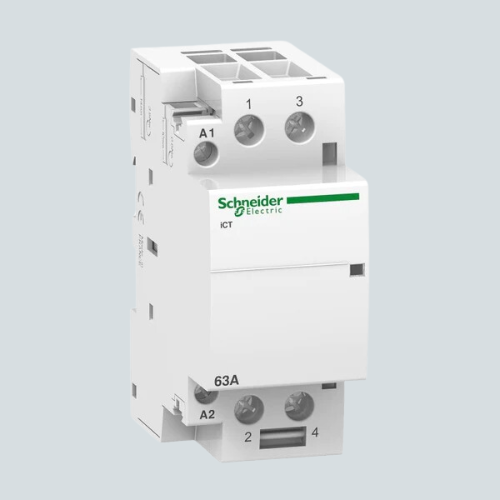

Overview of Schneider A9C20862 Acti9 iCT Contactor

The Schneider A9C20862 is a 2-pole modular contactor from the Acti9 iCT series, designed for controlling motors, heating, and lighting systems. It supports a control voltage of 220-240 V AC at 50 Hz and delivers a rated operational current of 63 A for AC-7a and 20 A for AC-7b applications. The compact, clip-on DIN rail mounting makes it suitable for efficient panel installation.

Key Features of Schneider A9C20862 Contactor

  • 2 Normally Open Contacts (2NO): Provides reliable switching for motor and lighting loads.
  • Rated Current: 63 A operational current at AC-7a and 20 A at AC-7b.
  • Control Voltage: 220-240 V AC at 50 Hz for versatile industrial applications.
  • Durability: Mechanical durability of 1,000,000 cycles and electrical durability of up to 100,000 cycles depending on load type.
  • Compact Size: Dimensions of 85 mm height, 36 mm width, and 68.5 mm depth, optimized for space-saving control panels.
  • Easy Installation: Clip-on mounting on 35 mm DIN rails for quick and secure setup.
  • Compliance: Certified to IEC/EN 61095, IP20 degree of protection, and suitable for operation in temperatures ranging from -5 °C to 60 °C.

Technical Specs

Specification Details
Poles 2P
Contact Composition 2 Normally Open (2NO)
Rated Operational Current 63 A AC-7a / 20 A AC-7b
Control Circuit Voltage 220-240 V AC, 50 Hz
Switching Frequency 100 operations/day
Mechanical Durability 1,000,000 cycles
Electrical Durability Up to 100,000 cycles (load dependent)
Mounting Clip-on on 35 mm DIN rail
Dimensions (HxWxD) 85 x 36 x 68.5 mm
Degree of Protection IP20
Operating Temperature -5 to 60 °C

Applications / Use Case

Schneider A9C20862 contactor is ideal for motor control, lighting, and heating applications in residential, commercial, and light industrial environments. Its reliable switching and compact form make it suitable for control panel integration where space is limited.

Schneider Electric offers an 18-month warranty, reflecting its commitment to product reliability and performance.
