SRT2-ROC16
SRT2-ROC16
Manufacturer: OMRON
Condition: New and Unused, Surplus.
Overview of "Omron SRT2-ROC16"

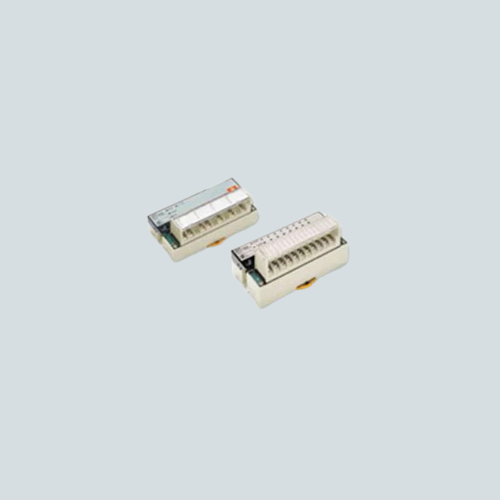

The Omron SRT2-ROC16 is a 16-point relay output remote terminal unit designed for the CompoBus/S system. It features electromechanical relay outputs rated for 3 A per contact, suitable for industrial applications requiring robust, isolated switching capabilities over remote I/O networks.
Key Features of "Omron - SRT2-ROC16"
- 16 Relay Outputs: Electromechanical relay contacts with a rated load of 3 A at 250 VAC or 30 VDC for resistive loads.
- Maximum Contact Voltage: 250 VAC and 30 VDC, allowing versatile switching capabilities.
- Switching Capacity: 730 VA (AC) and 90 W (DC) ensuring capability for common industrial loads.
- Min. Permissible Load: 10 mA at 5 VDC, for low-load switching.
- Long Life: Electrical life expectancy of 100,000 operations at rated load and mechanical life expectancy of 20 million operations.
- Communication: Compatible with CompoBus/S communication system supporting high-speed and long-distance networks.
- Mounting: DIN rail and screw mounting capable, offering flexible installation options.
- Dimensions: 155 mm width, 50 mm height, and 50 mm depth with a weight of approximately 240 g.
- Durability: Conforms to IEC61000-4-4 noise immunity, vibration resistance, and shock resistance standards.
- Operating Environment: Operating temperature range from 0°C to 55°C and humidity from 35% to 85%.
- Safety Approvals: UL 508, CSA C22.2 No. 14 certified for industrial safety compliance.
Technical Specs of "SRT2-ROC16"
| Specification | Details |
|---|---|
| Model | SRT2-ROC16 |
| Brand | Omron |
| Number of Outputs | 16 (relay outputs) |
| Contact Rating | 3 A at 250 VAC or 30 VDC (resistive load) |
| Max Switching Capacity | 730 VA (AC), 90 W (DC) |
| Min Permissible Load | 10 mA at 5 VDC |
| Life Expectancy (Electrical) | 100,000 operations (rated load) |
| Life Expectancy (Mechanical) | 20 million operations |
| Dimensions (W x H x D) | 155 mm x 50 mm x 50 mm |
| Weight | 240 g |
| Mounting | DIN rail and screw mounted |
| Operating Temp. | 0°C to 55°C |
| Certifications | UL, CSA industrial approvals |
Applications / Use Case
The Omron SRT2-ROC16 is ideal for distributed relay output control in industrial automation systems such as factory automation, process control, and remote signaling applications. Its robust relay contacts provide reliable switching for a wide variety of electrical loads over CompoBus/S remote I/O networks.
