Overview of "Omron SRT2-OD08-1"

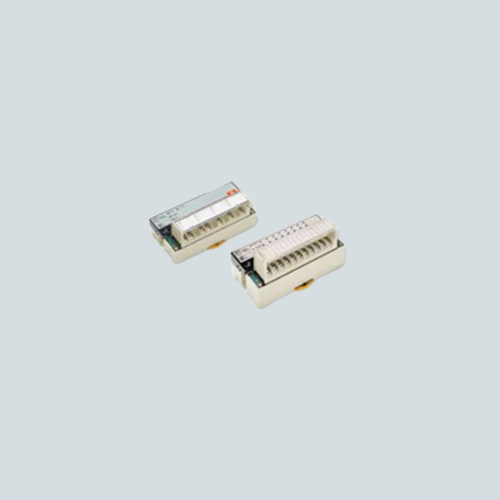

The Omron SRT2-OD08-1 is an 8-point PNP digital output Remote Terminal unit designed for the CompoBus/S system. It supports long-distance communication, free topology, and features fast response times, making it suitable for efficient remote I/O control in industrial automation applications.

Key Features of "Omron - SRT2-OD08-1"

  • 8 PNP Digital Outputs: Provides 8 digital output points with 0.3 A rated output current per point.
  • Communication: Compatible with long-distance and high-speed communication modes on CompoBus/S networks.
  • Operating Voltage: I/O power supply rated at 24 V DC with a communication power supply voltage range of 14 to 26.4 V DC.
  • Response Time: ON delay and OFF delay times of 1.5 ms max, ensuring timely signal output.
  • Indicators: LED output indicators for easy status monitoring.
  • Mounting: Supports DIN rail and screw mounting for flexible and secure installation options.
  • Durability: Conforms to IEC61000-4-4 for noise immunity (2 kV power lines), vibration and shock resistance standards.
  • Compact Size: Dimensions of approximately 54 mm (W) x 48 mm (H) x 80 mm (D) with a weight up to 80 g.

Technical Specs of "SRT2-OD08-1"

Specification Details
Model SRT2-OD08-1
Brand Omron
Number of Digital Outputs 8 (PNP transistor outputs)
Rated Output Current 0.3 A per point
Power Supply Voltage (I/O) 24 V DC +10% / -15%
Communication Power Supply Voltage 14 to 26.4 V DC
ON/OFF Delay Time 1.5 ms max
Noise Immunity IEC61000-4-4, 2 kV (power lines)
Mounting DIN rail / screw mounting
Dimensions (W x H x D) 54 mm x 48 mm x 80 mm
Weight 80 g max
Operating Temperature 0°C to 55°C

Applications / Use Case

Omron SRT2-OD08-1 is used in distributed industrial control systems for remote output control, ideal for factory automation and process control. It facilitates efficient, reliable long-distance I/O communication, making it a key component in modular automation setups.
