S8VK-S48024

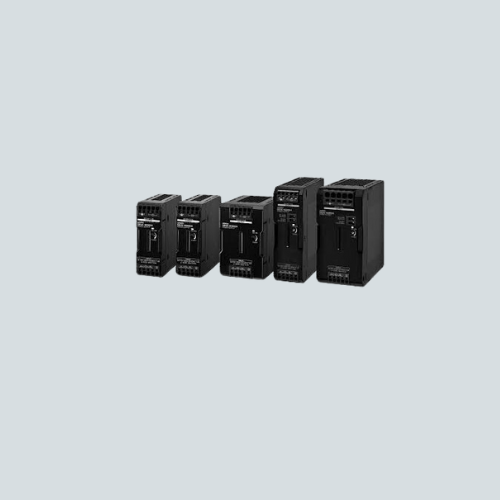

Overview of "Omron S8VK-S48024"

The Omron S8VK-S48024 is a high-efficiency, 480 W single-phase DIN rail power supply unit delivering 24 V DC output at 20 A. It is designed for industrial automation applications requiring stable and reliable DC power with an extended operating temperature range from -40°C to 70°C.

Key Features of "Omron - S8VK-S48024"

• Power Output: 480 W with a rated output current of 20 A at 24 V DC.
• Input Voltage Range: Supports wide input AC voltage from 85 to 264 VAC and DC input voltage 90 to 350 V DC.
• Efficiency: High efficiency of up to 93% at 230 VAC input minimizes energy consumption and heat generation.
• Protection: Built-in overload automatic reset, output overvoltage protection, and under-voltage alarm output for stable operation.
• Installation: DIN rail mountable with push-in plus terminal blocks for easy wiring and maintenance.
• Durability: Coated board and robust design ensure resistance against dust and moisture, with IP20 protection rating.
• Environment Range: Operates reliably in harsh conditions with a wide ambient temperature range from -40°C to +70°C.
• Reliability: MTBF of 135,000 hours and a minimum life expectancy of 10 years under rated conditions.

Technical Specs of "S8VK-S48024"

Applications / Use Case

The Omron S8VK-S48024 power supply is ideally suited for industrial control panels, factory automation, and any application requiring reliable and efficient 24 V DC power. Its robustness and broad input range make it practical for varied industrial environments, including harsh conditions.
