R88M-K20030H-S2

Overview of "Omron R88M-K20030H-S2"

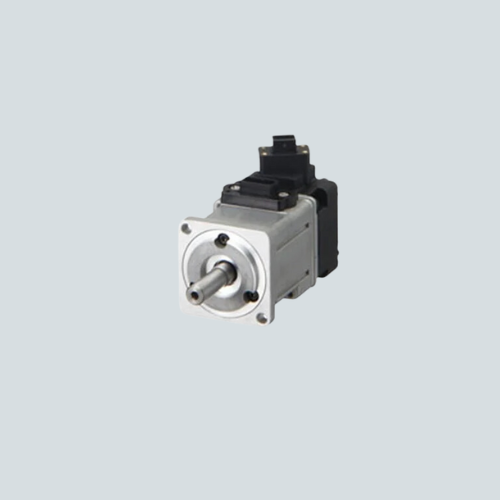

The Omron R88M-K20030H-S2 is a G5 series AC servo motor designed for precise motion control in industrial automation. It delivers 200 W output power with a rated speed of 3000 rpm and rated torque of 0.64 Nm. The motor includes a 20-bit incremental encoder for accurate feedback.

Key Features of "Omron - R88M-K20030H-S2"

• Servo Control Methods: Supports analog, EtherCAT, MECHATROLINK II, and pulse train control methods for versatile integration.
• Rated Output: 200 W with a rated speed of 3000 rpm.
• Torque: Rated torque of 0.64 Nm and peak torque up to 1.91 Nm for dynamic performance.
• Encoder: Incremental encoder with 20-bit resolution for precise position feedback.
• Motor Features: Includes options with brake and oil seal, flange size of 60 mm, and shaft diameter of 11 mm.
• High Reliability: Compliant with industrial standards for vibration, insulation resistance, and dielectric strength.
• Compact Size: Motor dimensions 60 mm square flange, standard shaft with key and tap options, weight approximately 820 g.

Technical Specs of "R88M-K20030H-S2"

Applications / Use Case

The Omron R88M-K20030H-S2 is ideal for applications requiring precise and high-speed servo control such as robotics, packaging machines, semiconductor manufacturing, and assembly lines. Its varied communication interfaces and robust encoder enable it to meet the demands of sophisticated automation processes.
