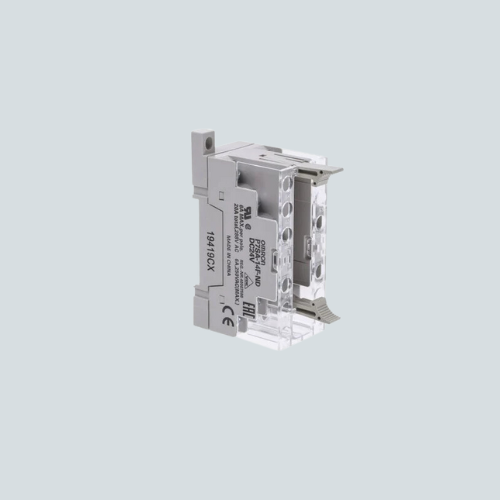

Overview of "Omron P7SA-14F-ND-DC24"
The Omron P7SA-14F-ND-DC24 is a 14-pin relay socket designed for G7SA series 6-pole safety relays. It supports DIN rail or surface mounting, with screw terminals and an LED operation indicator, making it suitable for secure relay connection in industrial control panels.
Key Features of "Omron - P7SA-14F-ND-DC24"
- Pin Count: 14 terminals supporting 6 poles for G7SA safety relays.
- Mounting Style: Options for DIN rail and surface/screw mounting for versatile installation.
- Terminal Type: Screw terminals ensuring secure and reliable wiring.
- Indicators: LED operation indicator for visual feedback of relay status.
- Coil Voltage: Designed for 24 V DC coil voltage.
- Socket Color: Beige colored housing for easy identification.
- Wire Compatibility: Supports both solid and stranded wires.
- Accessories: Includes hold down clip and release lever for easy handling.
- Dimensions: 90 mm height, 30 mm width, 60.5 mm depth.
Technical Specs of "P7SA-14F-ND-DC24"
| Specification | Details |
|---|---|
| Model | P7SA-14F-ND-DC24 |
| Brand | Omron |
| Number of Pins | 14 |
| Applicable Product Family | G7SA 6-pole relays |
| Mounting Method | DIN rail and surface (screw) |
| Terminal Type | Screw |
| Coil Voltage | 24 V DC |
| LED Indicator | Yes |
| Color | Beige |
| Dimensions (H x W x D) | 90 mm x 30 mm x 60.5 mm |
| Wire Compatibility | Solid and stranded wires |
Applications / Use Case
The Omron P7SA-14F-ND-DC24 socket is used for mounting G7SA series safety relays, commonly found in industrial control and safety circuits requiring reliable relay wiring and operation indication. It is suitable in machine safety, process control, and emergency stop systems.
-
