NX?SID800
NX?SID800
Manufacturer: OMRON
Condition: New and Unused, Surplus.

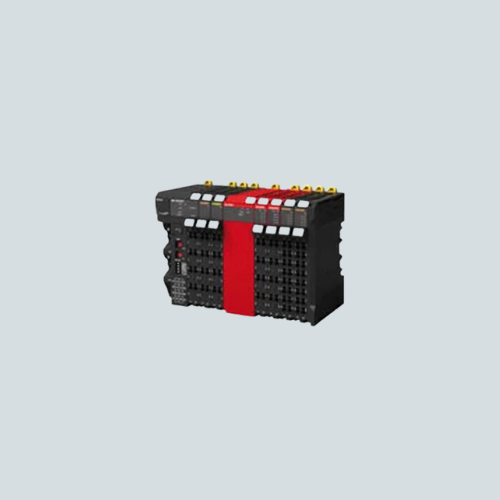

Overview of Omron NX-SID800
The Omron NX-SID800 is a safety input unit part of the NX Series I/O system, designed for integration into industrial safety applications. It features 8 safety input points with PNP sinking inputs and 2 test output points with sourcing outputs, supporting 24 V DC operation. The module provides robust isolation and protective functions for reliable safety control.
Key Features
- 8 safety input points and 2 test output points.
- PNP (sinking) internal I/O common.
- Rated input voltage: 24 V DC (20.4 to 28.8 V DC).
- Test output type: Sourcing outputs (PNP) with max load current of 50 mA.
- Dielectric strength: 510 VAC for 1 minute between isolated circuits.
- Insulation resistance: Minimum 20 MΩ between isolated circuits (100 V DC).
- Photocoupler isolation for input/output isolation.
- Unit power consumption: Max 0.75 W.
- Free-run refreshing I/O method.
- Screwless push-in terminal blocks (16 terminals).
- Compact dimensions: 12 mm (W) × 100 mm (H) × 71 mm (D).
Technical Specifications
| Specification | Details |
|---|---|
| Model | NX-SID800 |
| Safety Inputs | 8 points |
| Test Outputs | 2 points |
| Input Current | 3.0 mA typical |
| Input ON Voltage | 15 V DC minimum |
| Input OFF Voltage/Current | 5 V DC max / 1 mA max |
| Test Output Load Current | 50 mA max |
| Test Output Residual Voltage | 1.2 V max |
| Isolation | Photocoupler isolation |
| Power Supply | 24 V DC (20.4 to 28.8 V) |
| Terminal Block | Screwless push-in |
| Dimensions (W × H × D) | 12 × 100 × 71 mm |
| Weight | 65 g max |
| Operating Temperature | 0°C to 55°C |
| Protective Functions | Overvoltage protection circuit, ground fault detection |
Applications
The NX-SID800 is ideal for safety input monitoring in machines and factory automation systems where reliable and fast detection of safety signals is critical. It integrates naturally with the NX safety system, ensuring flexible and expandable safety architectures.
