Buy Omron NX-ID5342 – Product Overview

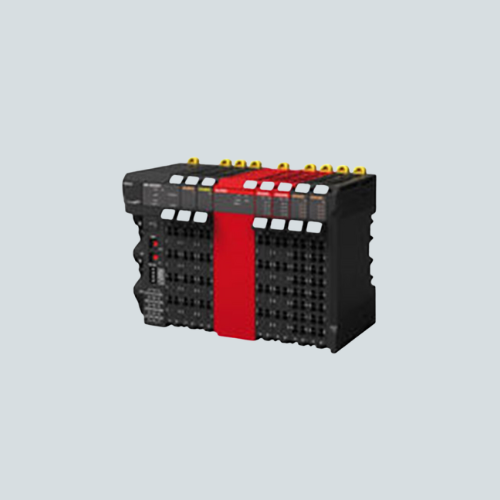

The Omron NX-ID5342 is a 16-point digital input unit designed for the NX-series modular I/O system. This industrial-grade automation component features NPN 24 VDC inputs with a compact 12 mm width, making it ideal for space-constrained control panels. Built with screwless push-in connectors for rapid installation, the NX-ID5342 integrates seamlessly with Omron's EtherCAT coupler units and high-speed NX-bus architecture. As a trusted supplier in Canada and the United States, LeadTime.ca stocks genuine OEM Omron components for worldwide industrial parts distribution with fast global shipping.
Omron NX-ID5342 Features & Benefits
Key features include 16 digital inputs with configurable I/O refreshing (synchronous or free-run), 20 μs maximum ON response time, and 400 μs maximum OFF response time. The unit supports photocoupler isolation with adjustable input filter times ranging from 0.25 ms to 256 ms for noise immunity. Its compact design, low power consumption (0.55 W maximum), and support for six installation orientations provide exceptional flexibility. The NX-ID5342 conforms to international standards including EN 61131-2 and UL 508, ensuring compatibility across North America, Europe, and Asia markets.
Omron NX-ID5342 Specifications & Datasheet
| Specification | Value |
|---|---|
| Model | NX-ID5342 |
| Digital Inputs | 16 points NPN |
| Rated Input Voltage | 15–28.8 VDC (24 VDC nominal) |
| Response Time (ON/OFF) | 20 μs / 400 μs maximum |
| Module Width | 12 mm |
| Connection Type | Screwless push-in terminal block |
| Operating Temperature | 0°C to 55°C |
| Power Consumption | 0.55 W maximum |
| IP Rating | IP20 |
For complete technical specifications, refer to the official Omron NX-ID/IA/OD/OC/MD datasheet to ensure compatibility and full configuration details.
Omron NX-ID5342 Applications in Industrial Automation
This unit is commonly deployed in industrial automation, process control, machine automation, production line systems, and factory control panels worldwide. It excels in applications requiring fast, reliable digital input sensing with minimal latency, such as motion control systems, conveyor management, and automated assembly lines. Export-ready automation components like the NX-ID5342 are essential for manufacturers integrating distributed I/O architectures across global facilities.
Omron NX-ID5342 Price & Worldwide Availability
Check current Omron NX-ID5342 pricing and availability online with real-time stock updates. LeadTime.ca offers competitive bulk ordering options and fast international dispatch across North America, Europe, Asia, and emerging industrial markets.
Why Buy Omron Products from LeadTime.ca
All products on LeadTime.ca are genuine OEM, factory-tested, and sourced from verified suppliers. We provide fast worldwide shipping, competitive pricing on bulk export orders, and expert technical support. As a certified distributor of industrial automation components, we ensure every part meets original manufacturer specifications.
