NX-EC0122
NX-EC0122
Manufacturer: OMRON
Condition: New and Unused, Surplus.

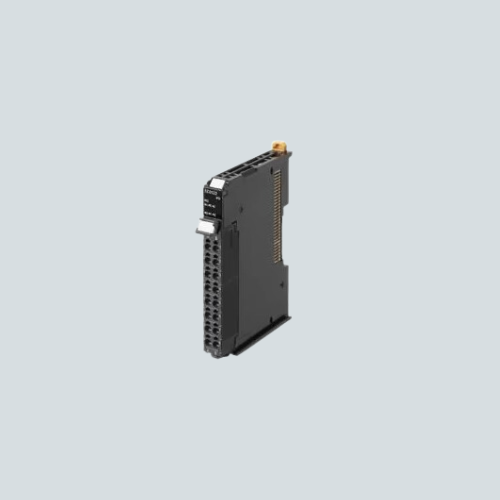

Overview of "Omron NX-EC0122"
The Omron NX-EC0122 is a single-channel incremental encoder input unit for the NX-series I/O system, designed to provide accurate position and speed feedback with high-speed signal processing up to 500 kHz. It features a compact design with push-in terminal connections for easy installation.
Key Features of "Omron - NX-EC0122"
- Incremental Encoder Input: Single-channel PNP input with phases A and B supporting up to 500 kHz frequency, plus phase Z input at 125 kHz.
- High-Speed Signal Processing: Supports free running, synchronous, and task period prioritized I/O refreshing for precise control.
- Compact Design: Dimensions of 12 mm (W) x 104.5 mm (H) x 80.1 mm (D), lightweight at 70 g, ideal for space-limited panels.
- Push-in Connection: Screwless push-in connectors for secure and quick wiring.
- IP Rating: IP20 protection level for industrial environments.
- Power and Isolation: Powered from NX bus (24 V DC) with photocoupler isolation and insulation resistance of 20 MΩ minimum.
- Durability: Dielectric strength of 510 VAC for 1 minute ensures operational safety.
Technical Specs of "NX-EC0122"
| Specification | Details |
|---|---|
| Model | NX-EC0122 |
| Brand | Omron |
| Type | Incremental Encoder Input Unit |
| Number of Channels | 1 |
| Input Type | PNP |
| Max Encoder Input Frequency | Phases A & B: 500 kHz, Phase Z: 125 kHz |
| I/O Refreshing Method | Free running, synchronous, task period prioritized |
| Power Supply | 24 V DC from NX bus |
| Isolation | Photocoupler |
| Insulation Resistance | 20 MΩ minimum (at 100 V DC) |
| Dielectric Strength | 510 VAC for 1 minute |
| I/O Connection | Push-in screwless terminal |
| Dimensions (W x H x D) | 12 mm x 104.5 mm x 80.1 mm |
| Weight | 70 g |
| Degree of Protection | IP20 |
| Operating Temperature | 0°C to 55°C |
Applications / Use Case
The Omron NX-EC0122 is suited for precise position and speed feedback in industrial automation systems, ideal for synchronizing motion control in robotics, packaging machines, and conveyors. It delivers reliable feedback for high-speed applications requiring accuracy and speed.
