NX-AD3603
NX-AD3603
Manufacturer: OMRON
Condition: New and Unused, Surplus.

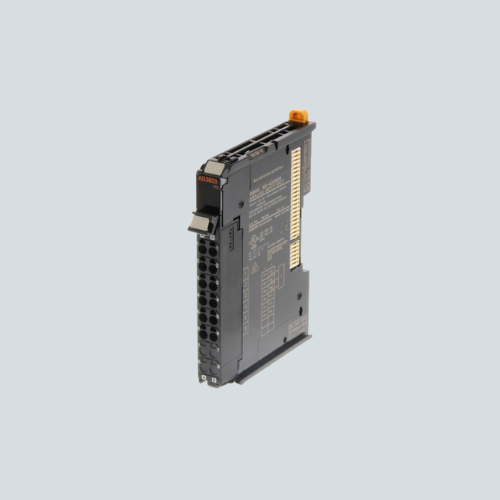

Overview of Omron NX-AD3603
The Omron NX-AD3603 is an analog input unit designed for the NX I/O bus system. It provides 4 single-ended voltage input channels with a wide input range from -10 to +10 V, offering 13-bit resolution and fast conversion times suitable for precise industrial control applications.
Key Features
- 4 analog inputs, single-ended type.
- Input voltage range from -10 to +10 V, suitable for diverse sensor inputs.
- High resolution analog input with 13-bit accuracy (1/8000 full scale).
- Fast conversion time of 250 µs per channel.
- Low power consumption: 1.35 W max (with CPU), 1.10 W (with coupler).
- Screwless push-in terminal blocks for easy and secure wiring.
- Compact size: 12 mm wide, 100 mm high, and 71 mm deep.
- Operating temperature range: 0°C to 55°C.
- IP20 rated for protection against dust ingress without water protection.
Technical Specifications
| Specification | Details |
|---|---|
| Model | NX-AD3603 |
| Type | Analog Input Unit (Voltage type) |
| Number of Channels | 4 |
| Input Range | -10 to +10 V |
| Resolution | 13 Bit (1/8000 full scale) |
| Conversion Time | 250 μs per channel |
| Input Circuit | Single-ended |
| Connection | Screwless push-in terminal |
| Power Consumption | 1.35 W max (with CPU) |
| Operating Temperature | 0°C to 55°C |
| Dimensions (W x H x D) | 12 x 100 x 71 mm |
| Weight | 70 g |
| Protection | IP20 |
Applications
The NX-AD3603 is well-suited for precise voltage measurement in industrial environments such as factory automation, process control, and machine monitoring. Its high resolution and fast conversion support accurate data acquisition for advanced control systems.
Price Matching / Price on Inquiry
Price Matching / Price on Inquiry
If this item is readily available at a lower price through any valid distributor, please contact us for price matching. Leadtime is committed to providing you with the best value for your purchase.
Warranty
Warranty
Leadtime offers a 1-year warranty for all products sold and repaired, providing a dependable and reliable investment in your company's future.
