GX-JC03
GX-JC03
Manufacturer: OMRON
Condition: New and Unused, Surplus.

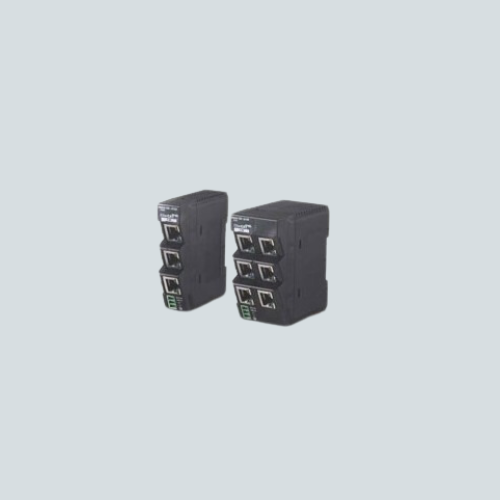

Overview of Omron GX-JC03 EtherCAT Junction Slave
The Omron GX-JC03 is a compact EtherCAT junction slave designed for flexible and high-speed machine control systems. It provides three ports (1 in, 2 out) for daisy chain and branch wiring, enabling flexible network configurations. The device operates with 24 VDC power supply and supports long-distance wiring with stable power delivery.
Key Features of Omron GX-JC03
- EtherCAT Junction Slave: Enables flexible wiring with daisy chain and branch connections.
- Compact Size: Only 25 mm wide, the smallest in its class, saving space on control boards.
- Power Supply: Operable within 20.4 to 28.8 VDC, suitable for stable operation even with voltage drops.
- Current Consumption: Low power consumption at 80 mA for efficient operation.
- Operating Temperature: -10 to 55°C operation range suits industrial environments.
- Connectivity: Three ports allow flexible network design with 1 input and 2 output ports.
- Certifications: CE and UC1 for compliance with safety and performance standards.
Technical Specs of Omron GX-JC03
| Specification | Details |
|---|---|
| Number of Ports | 3 (1 input, 2 output) |
| Power Supply Voltage | 20.4 to 28.8 VDC (24 VDC ±15%) |
| Current Consumption | 80 mA |
| Operating Temperature | -10 to 55 °C |
| Ambient Humidity | 25% to 85% (no condensation) |
| Dimensions | 25 mm (W) x 78 mm (H) x 90 mm (D) |
| Weight | 165 g |
| Certifications | CE, UC1 |
Applications / Use Case
The Omron GX-JC03 EtherCAT junction slave is ideal for complex machine control systems requiring flexible, high-speed communications. Its small size and network flexibility are suitable for automation setups with demanding wiring and layout requirements.
Omron offers full warranty and support for this product.
